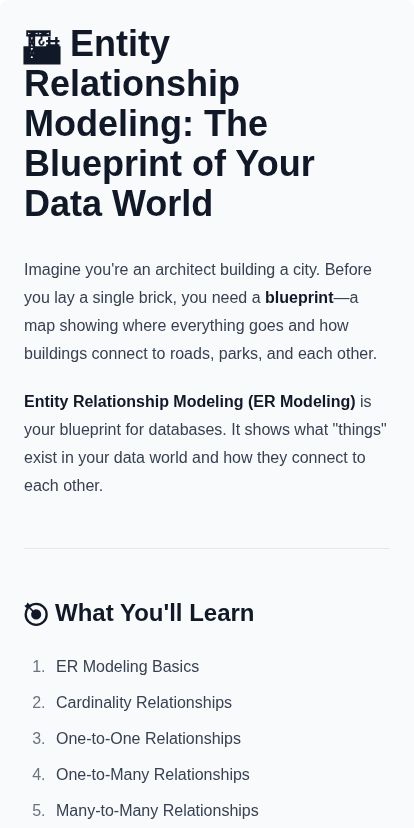

🏗️ Entity Relationship Modeling: The Blueprint of Your Data World

Imagine you’re an architect building a city. Before you lay a single brick, you need a blueprint—a map showing where everything goes and how buildings connect to roads, parks, and each other.

Entity Relationship Modeling (ER Modeling) is your blueprint for databases. It shows what “things” exist in your data world and how they connect to each other.

🎯 What You’ll Learn

1. ER Modeling Basics
2. Cardinality Relationships
3. One-to-One Relationships
4. One-to-Many Relationships
5. Many-to-Many Relationships

🧱 ER Modeling Basics

What is an Entity?

Think of an entity as a “thing” you want to remember information about.

Simple Examples:

• A Student is an entity (you store their name, age, grade)
• A Book is an entity (you store its title, author, pages)
• A Teacher is an entity (you store their name, subject)

What is a Relationship?

A relationship shows how entities connect to each other.

Real Life:

• A student borrows a book
• A teacher teaches a class
• A customer orders a pizza

The Family Photo Album Analogy 📸

Think of ER Modeling like organizing a family photo album:

• Entities = People in photos (Mom, Dad, Kids)
• Attributes = Details about each person (name, birthday)
• Relationships = How people connect (married to, parent of)

graph TD
    A["Student"] -->|borrows| B["Book"]
    C["Teacher"] -->|teaches| D["Class"]

🔢 Cardinality Relationships

What is Cardinality?

Cardinality answers one simple question:

“How MANY of one thing can connect to another thing?”

Think of it like asking:

• Can one person have many pets? (Yes!)
• Can one pet have many owners? (Maybe!)
• Can one passport belong to many people? (No!)

The Three Magic Numbers

Why Does This Matter?

When you build a database, you need to know:

• How many rows can connect?
• Is the connection required or optional?

This prevents messy, confusing data!

🔗 One-to-One Relationships (1:1)

The Passport Rule

One person has one passport. One passport belongs to one person.

Nobody shares a passport. Nobody has two passports (in most countries!).

Simple Examples

When Do We Use 1:1?

Use One-to-One when:

• Something is unique to just one other thing
• You want to split a big table into smaller pieces
• Some data is private or rarely used

graph LR
    A["Person"] -->|has exactly 1| B["Passport"]
    B -->|belongs to exactly 1| A

Real Database Example

Person Table:

| person_id | name    |
|-----------|---------|
| 1         | Alice   |
| 2         | Bob     |

Passport Table:

| passport_id | person_id | number     |
|-------------|-----------|------------|
| 101         | 1         | AB123456   |
| 102         | 2         | CD789012   |

Each person has ONE passport. Each passport belongs to ONE person.

📚 One-to-Many Relationships (1:N)

The Library Card Rule

One library has many books. But each book belongs to only one library.

This is the most common relationship in databases!

Simple Examples

The Family Tree Picture 🌳

Think of a mother hen with her chicks:

• One mother → Many chicks
• Each chick → Only one mother

graph TD
    A["Author"] --> B["Book 1"]
    A --> C["Book 2"]
    A --> D["Book 3"]
    A --> E["Book 4"]

Real Database Example

Authors Table:

| author_id | name        |
|-----------|-------------|
| 1         | J.K. Rowling|

Books Table:

| book_id | title                  | author_id |
|---------|------------------------|-----------|
| 101     | Harry Potter 1         | 1         |
| 102     | Harry Potter 2         | 1         |
| 103     | Harry Potter 3         | 1         |

One author writes many books. Each book has one author.

The Golden Rule

The “many” side always stores the connection!

• Books table has author_id
• Author table does NOT have book_id

🎭 Many-to-Many Relationships (M:N)

The Party Invitation Rule

One student can join many clubs. One club can have many students.

Both sides can have MANY!

Simple Examples

The Bridge Table Solution 🌉

Here’s the tricky part:

Databases can’t directly store Many-to-Many relationships!

Solution: Create a bridge table (also called a junction table).

graph LR
    A["Student"] --> B["Enrollment"]
    B --> C["Class"]

The bridge table sits in the middle and connects both sides.

Real Database Example

Students Table:

| student_id | name    |
|------------|---------|
| 1          | Alice   |
| 2          | Bob     |

Classes Table:

| class_id | subject  |
|----------|----------|
| 101      | Math     |
| 102      | Science  |

Enrollments Table (Bridge):

| student_id | class_id |
|------------|----------|
| 1          | 101      |
| 1          | 102      |
| 2          | 101      |

Now Alice is in Math AND Science. Bob is in Math too!

Why Do We Need the Bridge?

Without a bridge table:

• Where would you store multiple classes for one student?
• Where would you store multiple students for one class?
• You’d need infinite columns!

The bridge table solves this elegantly.

🎨 Putting It All Together

The School Database

Let’s see all three relationships in one picture:

graph TD
    A["School"] -->|1:1| B["Principal"]
    A -->|1:N| C["Teacher"]
    C -->|1:N| D["Class"]
    E["Student"] -->|M:N via Enrollment| D

• One school has ONE principal (1:1)
• One school has MANY teachers (1:N)
• Students and Classes connect through enrollment (M:N)

🧠 Quick Memory Tricks

🚀 Why ER Modeling Matters

Before writing ANY SQL code, smart developers draw ER diagrams because:

1. Prevents mistakes - You see problems before they happen
2. Saves time - Fixing a drawing is faster than fixing a database
3. Communication - Everyone understands the plan
4. Better design - Clean relationships = fast queries

✨ Key Takeaways

1. Entities are things you store data about
2. Relationships show how entities connect
3. Cardinality tells you “how many”
4. 1:1 = One matches exactly one
5. 1:N = One matches many (most common!)
6. M:N = Many match many (needs a bridge table)

You now have the blueprint skills to design any database! 🏆
