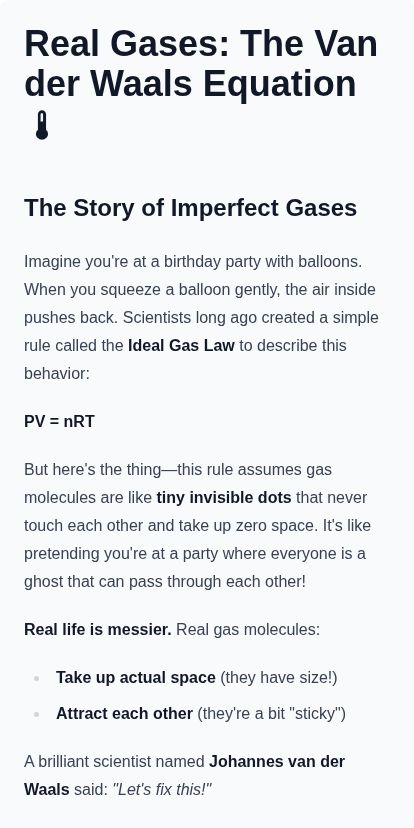

Real Gases: The Van der Waals Equation 🌡️

The Story of Imperfect Gases

Imagine you’re at a birthday party with balloons. When you squeeze a balloon gently, the air inside pushes back. Scientists long ago created a simple rule called the Ideal Gas Law to describe this behavior:

PV = nRT

But here’s the thing—this rule assumes gas molecules are like tiny invisible dots that never touch each other and take up zero space. It’s like pretending you’re at a party where everyone is a ghost that can pass through each other!

Real life is messier. Real gas molecules:

• Take up actual space (they have size!)
• Attract each other (they’re a bit “sticky”)

A brilliant scientist named Johannes van der Waals said: “Let’s fix this!”

🎯 The Van der Waals Equation

Van der Waals created a better formula that accounts for real gas behavior:

(P + a/V²)(V - b) = RT

For n moles of gas:

(P + an²/V²)(V - nb) = nRT

What Do Those Letters Mean?

Think of it like this:

• a = How “friendly” molecules are (they pull toward each other)
• b = How “fat” molecules are (they take up room)

🧲 Pressure Correction: The “Sticky Molecules” Fix

The Problem

Imagine throwing a ball at a wall. Now imagine that just before hitting the wall, invisible hands gently pull the ball backward. It would hit the wall with less force, right?

That’s exactly what happens with real gas molecules!

Why Does This Happen?

graph TD
    A["Gas molecule heading toward wall"] --> B["Other molecules behind it"]
    B --> C["Pull it backward slightly"]
    C --> D["Hits wall with LESS force"]
    D --> E["Measured pressure is LOWER"]

The molecules in the middle of the container attract the molecules near the walls, pulling them inward. This reduces the observed pressure.

The Correction Term: a/V²

To find the true pressure the gas would have without stickiness:

P_true = P_measured + a/V²

Or rearranged:

P_measured = P_true − a/V²

🍎 Simple Example

Imagine 1 mole of carbon dioxide (CO₂) in a 1-liter container.

• CO₂ has a = 3.59 L²·atm/mol²

The pressure reduction due to attraction:

Correction = a/V²
           = 3.59 / (1)²
           = 3.59 atm

This means the measured pressure is about 3.59 atm less than what an ideal gas would show!

Why a/V²?

• a (constant): Some gases are stickier than others
• V² (volume squared):
  • Smaller container → molecules closer together → more attraction
  • The attraction depends on TWO things: density of molecules leaving AND density of molecules pulling back

📦 Volume Correction: The “Fat Molecules” Fix

The Problem

Imagine a room with 10 people. If everyone is a ghost, they can overlap and use ALL the space. But real people take up room! You can’t stand where someone else is standing.

Gas molecules are the same. They’re not points—they have actual volume.

The Available Space

graph TD
    A["Total Container Volume V"] --> B["Minus Space Taken by Molecules"]
    B --> C["Equals Actual Free Space"]
    C --> D["V - nb = Available Volume"]

V_available = V − nb

Where:

• b = volume of one mole of molecules
• n = number of moles
• nb = total volume taken up by all molecules

🍎 Simple Example

1 mole of oxygen (O₂) in a 1-liter container.

• O₂ has b = 0.0318 L/mol

Available volume = V - nb
                 = 1 - (1 × 0.0318)
                 = 0.9682 L

So the gas molecules only have 96.82% of the container to actually move around in!

Why Does This Matter?

• At high pressures: Molecules are squeezed close together, so the volume they take up becomes significant
• At low pressures: Molecules are far apart, so their size doesn’t matter much

🔢 Van der Waals Constants: a and b

Every gas has its own a and b values because molecules have different:

• Sizes (bigger molecule = bigger b)
• Stickiness (more attraction = bigger a)

Common Values

🔍 What These Numbers Tell Us

Constant a (attraction):

• Small a (like Helium: 0.034) → Molecules barely attract each other
• Large a (like Water: 5.46) → Molecules really like each other!

Constant b (size):

• Small b (like Helium: 0.0237) → Tiny molecules
• Large b (like CO₂: 0.0427) → Bulkier molecules

🍎 Example: Comparing Helium and CO₂

Helium has:

• Very small a = molecules barely stick together
• Small b = tiny atoms

This is why helium behaves almost like an ideal gas!

Carbon dioxide has:

• Large a = molecules attract each other strongly
• Larger b = bigger molecules

CO₂ deviates significantly from ideal behavior, especially at high pressures.

🎬 Putting It All Together

Let’s see the complete Van der Waals equation in action:

graph TD
    A["Ideal Gas: PV = nRT"] --> B["Add Pressure Correction"]
    B --> C["P becomes #40;P + an²/V²#41;"]
    C --> D["Add Volume Correction"]
    D --> E["V becomes #40;V - nb#41;"]
    E --> F["Van der Waals: #40;P + an²/V²#41;#40;V - nb#41; = nRT"]

🍎 Complete Example

Calculate the pressure of 1 mole of CO₂ at 300 K in a 0.5 L container.

Given:

• n = 1 mol
• T = 300 K
• V = 0.5 L
• a = 3.59 L²·atm/mol²
• b = 0.0427 L/mol
• R = 0.0821 L·atm/mol·K

Step 1: Calculate available volume

V - nb = 0.5 - (1 × 0.0427) = 0.4573 L

Step 2: Calculate nRT

nRT = 1 × 0.0821 × 300 = 24.63 L·atm

Step 3: Solve for P

(P + an²/V²)(V - nb) = nRT
(P + 3.59×1²/0.5²)(0.4573) = 24.63
(P + 14.36)(0.4573) = 24.63
P + 14.36 = 53.86
P = 39.5 atm

Compare to ideal gas:

P = nRT/V = 24.63/0.5 = 49.26 atm

The real pressure (39.5 atm) is lower than ideal (49.26 atm) because CO₂ molecules attract each other!

🌟 Key Takeaways

1. Real gases aren’t perfect - molecules have size and attract each other

2. Pressure correction (a/V²) - molecules pull each other back, reducing pressure at the walls

3. Volume correction (nb) - molecules take up space, leaving less room to move

4. Van der Waals constants - each gas has unique a and b values based on molecular properties

5. When real gases act ideal:

   • High temperature (molecules move too fast to stick)
   • Low pressure (molecules are far apart)

🎓 Remember This!

“Real molecules have SIZE and they like each other a little bit!”

The Van der Waals equation simply takes the ideal gas law and says:

• “The actual pressure is a bit less because molecules attract”
• “The actual volume is a bit less because molecules take up space”

That’s it! You now understand why real gases behave differently from ideal ones. 🚀
