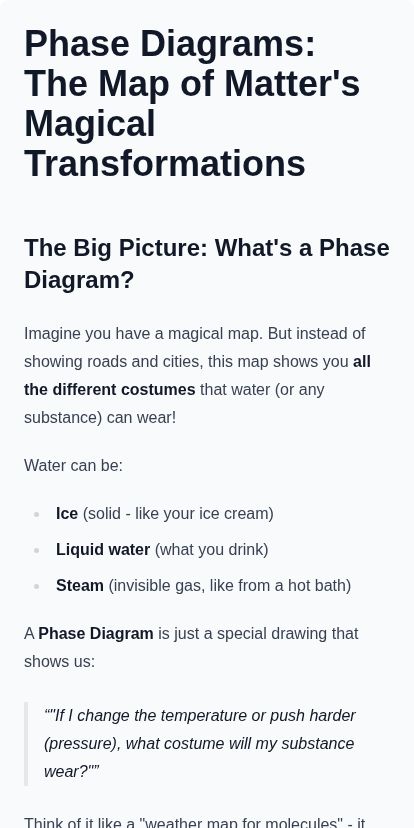

Phase Diagrams: The Map of Matter’s Magical Transformations
The Big Picture: What’s a Phase Diagram?
Imagine you have a magical map. But instead of showing roads and cities, this map shows you all the different costumes that water (or any substance) can wear!
Water can be:
- Ice (solid - like your ice cream)
- Liquid water (what you drink)
- Steam (invisible gas, like from a hot bath)
A Phase Diagram is just a special drawing that shows us:
“If I change the temperature or push harder (pressure), what costume will my substance wear?”
Think of it like a “weather map for molecules” - it tells you exactly what form matter will take!
P-T Phase Diagram: The Temperature-Pressure Map
What Is It?
The P-T (Pressure-Temperature) Phase Diagram is the most common map.
Picture it like this:
- Going up = Squeezing harder (more pressure)
- Going right = Getting hotter (more temperature)
graph TD A["P-T Diagram"] --> B["X-axis: Temperature"] A --> C["Y-axis: Pressure"] B --> D["Cold on left, Hot on right"] C --> E["Low pressure at bottom, High at top"]
The Three Regions
On this map, you’ll see three big countries:
| Region | What It Is | Real Life Example |
|---|---|---|
| Solid | Molecules locked tight | Ice cube in freezer |
| Liquid | Molecules flow freely | Water in your glass |
| Gas | Molecules fly everywhere | Steam from kettle |
The Boundary Lines
Between these countries, there are borders (curves):
- Solid-Liquid Line: Where ice melts into water
- Liquid-Gas Line: Where water boils into steam
- Solid-Gas Line: Where ice becomes gas directly (sublimation - like dry ice!)
Simple Example:
- You take ice from the freezer (-20°C)
- You warm it up (moving RIGHT on the map)
- At 0°C, you cross the border: Ice → Water!
P-V Phase Diagram: The Volume Story
What’s Different Here?
Now imagine a different map:
- Going up = Squeezing harder (pressure)
- Going right = Taking up more space (volume)
This diagram shows what happens when you squeeze or expand a gas.
The Special Curves
On a P-V diagram, you’ll see curves called isotherms - these are paths where temperature stays the same.
graph TD A["P-V Diagram"] --> B["Low Temperature: Shows flat region"] A --> C["High Temperature: Smooth curve"] B --> D["Gas condenses to liquid here!"] C --> E["Gas behaves normally"]
What the Flat Part Means
At low temperatures, there’s a flat horizontal line on the diagram.
Why? Because during this flat part, the gas is changing into liquid!
Example:
- You squeeze a balloon of steam slowly
- At first, pressure goes up
- Then it stays FLAT - steam is turning into water drops!
- Finally, it’s all liquid and pressure jumps up again
Triple Point: Where Three Worlds Meet
The Magic Spot
Imagine a place on your map where all three countries meet at exactly one point. That’s the Triple Point!
At this EXACT temperature and pressure:
- Ice exists
- Water exists
- Steam exists
- ALL AT THE SAME TIME!
Water’s Triple Point
For water, this magical spot is at:
- Temperature: 0.01°C (just barely above freezing)
- Pressure: 611 Pa (very low, about 0.006 atmospheres)
Simple Example:
- Imagine a sealed jar at the triple point
- You’d see ice floating in water
- With vapor floating above
- All three living together peacefully!
graph TD A["Triple Point"] --> B["Solid"] A --> C["Liquid"] A --> D["Gas"] B --> E["All three exist together!"] C --> E D --> E
Critical Point: The End of the Line
Where Liquid and Gas Become One
As you go higher in temperature and pressure, something strange happens. The liquid-gas border doesn’t go on forever!
It ends at a special spot called the Critical Point.
What Happens There?
Above the critical point:
- You can’t tell liquid from gas
- They become the same thing
- We call this a supercritical fluid
Everyday Example:
- CO2 Decaffeination: Coffee companies use CO2 above its critical point to remove caffeine. The supercritical CO2 acts like a liquid AND a gas at the same time - it flows through coffee beans and dissolves caffeine away!
Why Is This Cool?
A supercritical fluid has superpowers:
- Flows like a gas (gets into tiny spaces)
- Dissolves things like a liquid
- Best of both worlds!
Critical Constants: The Magic Numbers
What Are They?
Every substance has its own critical point. The critical constants are the exact numbers that define this special spot:
| Constant | Symbol | What It Means |
|---|---|---|
| Critical Temperature | Tc | Hottest point where liquid exists |
| Critical Pressure | Pc | Pressure at the critical point |
| Critical Volume | Vc | Space taken up at critical point |
Some Examples
| Substance | Tc (°C) | Pc (atm) |
|---|---|---|
| Water | 374°C | 218 atm |
| CO2 | 31°C | 73 atm |
| Oxygen | -119°C | 50 atm |
Simple Example:
- Water’s critical temperature is 374°C
- This means: Above 374°C, no matter how hard you squeeze, you can NEVER make liquid water!
- It will always be a supercritical fluid
Gibbs Free Energy: The Decision Maker
The Big Question
How does matter decide which costume to wear?
Enter Gibbs Free Energy (G) - the ultimate judge!
The Simple Rule
Every phase has an “energy score.” Matter ALWAYS chooses the phase with the LOWEST Gibbs Free Energy.
Think of it like water flowing downhill - it always goes to the lowest point!
graph TD A["Gibbs Free Energy Competition"] --> B["Solid's G] A --> C[Liquid's G"] A --> D[Gas's G] B --> E{Which is lowest?} C --> E D --> E E --> F["Winner is the stable phase!"]
The Formula (Don’t Worry, It’s Simple!)
G = H - TS
Where:
- G = Gibbs Free Energy (the score)
- H = Enthalpy (heat content)
- T = Temperature
- S = Entropy (disorder)
What This Means for Phases
| Temperature | What Happens |
|---|---|
| Cold | Solid has lowest G (wins!) |
| Medium | Liquid has lowest G (wins!) |
| Hot | Gas has lowest G (wins!) |
Simple Example:
- Put ice in sunlight
- Sun adds heat (increases T)
- This changes the “scores”
- Eventually, liquid’s score becomes lowest
- Ice melts - liquid wins!
At Phase Boundaries
At the exact temperature where phases change:
- Both phases have EQUAL Gibbs Free Energy
- It’s a tie!
- That’s why they can exist together at the melting point
Putting It All Together
The Complete Map Story
Now you understand the whole picture:
- P-T Diagram shows which phase exists at any temperature and pressure
- P-V Diagram shows what happens when you squeeze gases
- Triple Point is where all three phases meet
- Critical Point is where liquid and gas become indistinguishable
- Critical Constants are the magic numbers defining the critical point
- Gibbs Free Energy decides which phase wins!
The Ultimate Analogy
Imagine phases as three friends competing for attention:
- Solid: “I’m organized and stable!”
- Liquid: “I’m flexible and fun!”
- Gas: “I’m free and everywhere!”
Gibbs Free Energy is the judge that picks the winner based on temperature and pressure.
At the Triple Point, the judge says: “It’s a three-way tie!” At the Critical Point, liquid and gas merge: “You two are the same now!”
Key Takeaways
| Concept | One-Line Summary |
|---|---|
| P-T Diagram | Map showing phases at different temperatures and pressures |
| P-V Diagram | Shows volume changes during compression |
| Triple Point | Only spot where all three phases coexist |
| Critical Point | Where liquid and gas become one |
| Critical Constants | Tc, Pc, Vc - defining the critical point |
| Gibbs Free Energy | The “score” that determines the winning phase |
You Did It!
You now understand phase diagrams like a scientist! These aren’t just graphs on paper - they’re maps of how the universe works.
Every time you:
- Watch ice melt in your drink
- See steam rise from hot food
- Notice frost forming on a window
…you’re watching the magic of phase diagrams in action!
Remember: Matter is always listening to Gibbs Free Energy and choosing the phase with the lowest “score.” You now know the rules of this cosmic game!
