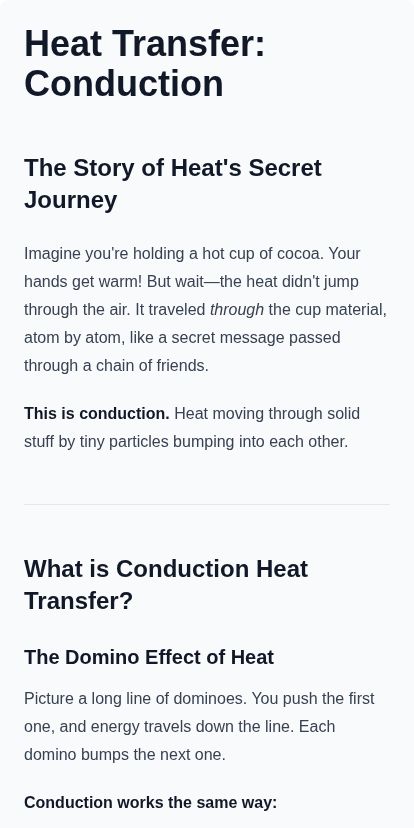

Heat Transfer: Conduction
The Story of Heat’s Secret Journey
Imagine you’re holding a hot cup of cocoa. Your hands get warm! But wait—the heat didn’t jump through the air. It traveled through the cup material, atom by atom, like a secret message passed through a chain of friends.
This is conduction. Heat moving through solid stuff by tiny particles bumping into each other.
What is Conduction Heat Transfer?
The Domino Effect of Heat
Picture a long line of dominoes. You push the first one, and energy travels down the line. Each domino bumps the next one.
Conduction works the same way:
- Hot atoms vibrate fast
- They bump into cooler atoms next to them
- Those atoms start vibrating too
- Heat travels through the material!
graph TD A["🔥 Hot End"] --> B["Atom vibrates fast"] B --> C["Bumps neighbor atom"] C --> D["That atom vibrates"] D --> E["❄️ Cool End"]
Real Life Example
Touch a metal spoon sitting in hot soup. The handle gets hot even though only the tip is in the soup. Heat conducted through the metal!
Key Point: No material moves. Only energy passes along.
Fourier’s Law: The Rule of Heat Flow
Meet Jean-Baptiste Fourier
A clever scientist asked: “How much heat flows through stuff?”
He discovered a simple rule. It’s like water flowing downhill!
The Law in Simple Words
More temperature difference = More heat flows Thicker material = Less heat flows Bigger area = More heat flows
The Formula
Q = -k × A × (ΔT / L)
| Symbol | What It Means | Like… |
|---|---|---|
| Q | Heat flow rate | Water flow in a pipe |
| k | Thermal conductivity | How slippery the pipe is |
| A | Area | Width of the pipe |
| ΔT | Temperature difference | Height of the hill |
| L | Thickness | Length of the pipe |
Example
A window loses heat faster when:
- It’s colder outside (bigger ΔT)
- The window is bigger (bigger A)
- The glass is thinner (smaller L)
The minus sign? Heat flows from hot to cold. Always!
Thermal Conductivity (k): The Speed Lane
Good vs. Bad Heat Travelers
Think of materials like roads. Some are highways, some are dirt paths.
Thermal conductivity (k) tells us: How easily does heat travel through this stuff?
The Conductivity Lineup
graph TD A["FAST 🏎️"] --> B["Copper k = 400"] B --> C["Aluminum k = 200"] C --> D["Steel k = 50"] D --> E["Glass k = 1"] E --> F["Wood k = 0.15"] F --> G["Air k = 0.025"] G --> H["SLOW 🐌"]
| Material | k Value | Speed |
|---|---|---|
| Copper | 400 | Super fast |
| Aluminum | 200 | Very fast |
| Steel | 50 | Fast |
| Glass | 1 | Slow |
| Wood | 0.15 | Very slow |
| Air | 0.025 | Super slow |
Why It Matters
Cooking pans use copper or aluminum—heat spreads evenly!
Pot handles use wood or plastic—your hand stays cool!
Units: Watts per meter per degree (W/m·K)
Thermal Resistance ®: The Heat Traffic Jam
The Roadblock for Heat
Some materials slow heat down. We call this thermal resistance.
Think of it like traffic. More resistance = bigger traffic jam = less heat gets through.
The Formula
R = L / (k × A)
Or for a given area:
R = L / k
| High R | Low R |
|---|---|
| Heat moves slowly | Heat moves quickly |
| Good insulator | Good conductor |
| Keeps house warm | Spreads heat fast |
Example: Winter Jacket
Your jacket has high thermal resistance. Heat from your body can’t escape easily. You stay warm!
More thickness (L) = More resistance Lower conductivity (k) = More resistance
Steady State Conduction: The Balance Point
When Things Settle Down
Imagine turning on a stove under a pot. At first, the bottom heats up fast. Then things balance out.
Steady state = Temperature stops changing with time
What Happens
graph LR A["Heat In"] --> B["Material"] B --> C["Heat Out"] A -.->|Same amount| C
- Heat entering = Heat leaving
- Temperature at each point stays constant
- Like a river—water flows, but the river stays the same!
Real Example
A wall in your house on a winter day:
- Inside: 20°C (constant)
- Outside: 0°C (constant)
- Heat flows steadily through the wall
- Each point in the wall has a fixed temperature
The Temperature Profile
Temperature drops smoothly from hot side to cold side. Like a ramp, not stairs!
Series and Parallel Slabs: Layered Heat
Series: Layers Stacked
Think of passing through security checkpoints. You go through one, then the next, then the next.
Heat through layers in series:
graph LR A["🔥 Hot"] --> B["Wall 1"] B --> C["Wall 2"] C --> D["Wall 3"] D --> E["❄️ Cold"]
Total resistance = R1 + R2 + R3
Like adding up waiting times at each checkpoint!
Example: Your House Wall
- Brick outside (R = 0.5)
- Insulation middle (R = 3.0)
- Drywall inside (R = 0.2)
- Total R = 0.5 + 3.0 + 0.2 = 3.7
Parallel: Side by Side
Now imagine two doors next to each other. People can go through either one!
Heat through parallel paths:
graph TD A["🔥 Hot"] --> B["Path 1"] A --> C["Path 2"] B --> D["❄️ Cold"] C --> D
1/R_total = 1/R1 + 1/R2
More paths = Less total resistance = More heat flow!
Example: Window in a Wall
Heat escapes through:
- The wall (high R, less heat)
- The window (low R, more heat)
Both paths work at the same time!
Good and Bad Conductors
The Two Teams
Team Good Conductors (Heat Superstars)
| Material | Why It’s Good |
|---|---|
| Copper | Free electrons carry heat fast |
| Aluminum | Light and conducts well |
| Silver | Best conductor but expensive! |
| Gold | Excellent but super expensive |
| Steel | Strong and conducts okay |
What makes them good?
- Lots of free electrons
- Electrons move easily
- Like having many messengers!
Team Bad Conductors (Insulators)
| Material | Why It’s Bad at Conducting |
|---|---|
| Wood | No free electrons |
| Plastic | Electrons stuck in place |
| Glass | Atoms hold tight to electrons |
| Rubber | Great insulator |
| Air | Molecules far apart |
What makes them bad?
- No free electrons
- Atoms don’t pass energy well
- Like having no messengers!
Why We Need Both
graph LR A["Good Conductors"] --> B["Cooking pans"] A --> C["Computer heat sinks"] A --> D["Car radiators"] E["Bad Conductors"] --> F["Pot handles"] E --> G["House insulation"] E --> H["Oven mitts"]
Quick Rule
Metals = Good conductors (high k) Non-metals = Bad conductors (low k)
Putting It All Together
The Complete Picture
- Conduction = Heat traveling through stuff by atomic vibration
- Fourier’s Law = The math rule for heat flow
- Thermal conductivity (k) = How fast heat moves through a material
- Thermal resistance ® = How much a material blocks heat
- Steady state = When temperatures stop changing
- Series slabs = Add resistances (like checkpoints)
- Parallel slabs = More paths for heat
- Good conductors = Metals with free electrons
- Bad conductors = Insulators with no free electrons
One Final Analogy
Conduction is like a bucket brigade:
- People stand in a line (atoms in material)
- They pass buckets of water (heat energy)
- Nobody moves from their spot
- Water travels from well to fire (hot to cold)
- Some brigades are fast (metals)
- Some brigades are slow (insulators)
You Did It!
Now you understand how heat sneaks through walls, why metal spoons get hot, and why your winter coat keeps you warm!
Remember: Heat always wants to travel from hot to cold. Materials just decide how fast it gets there!
