Wave Fundamentals

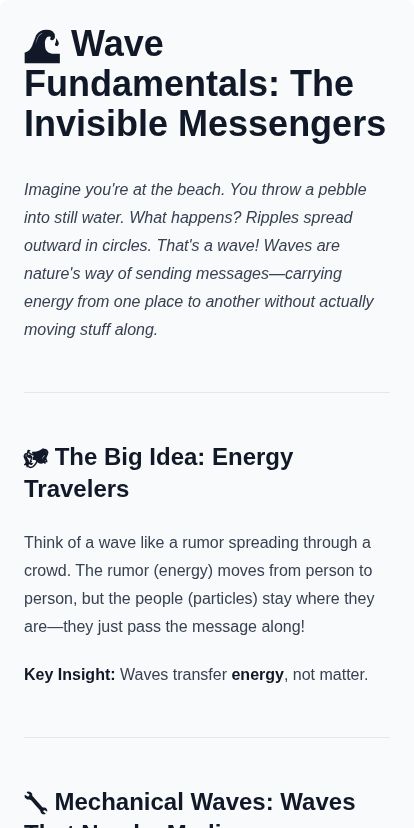

🌊 Wave Fundamentals: The Invisible Messengers

Imagine you’re at the beach. You throw a pebble into still water. What happens? Ripples spread outward in circles. That’s a wave! Waves are nature’s way of sending messages—carrying energy from one place to another without actually moving stuff along.

🎭 The Big Idea: Energy Travelers

Think of a wave like a rumor spreading through a crowd. The rumor (energy) moves from person to person, but the people (particles) stay where they are—they just pass the message along!

Key Insight: Waves transfer energy, not matter.

🔧 Mechanical Waves: Waves That Need a Medium

What Are Mechanical Waves?

Imagine you’re holding one end of a jump rope. You shake it up and down. A wave travels along the rope to the other end. This is a mechanical wave—it needs something to travel through!

The Rule: Mechanical waves need a medium (stuff) to travel through—like air, water, or a rope.

Everyday Examples:

• 🌊 Ocean waves travel through water
• 🔊 Sound travels through air
• 🎸 Guitar string vibrations travel along the string

Think of it like this: You can’t do “the wave” at a stadium if there are no people! The people ARE the medium.

graph TD
    A["Energy Source"] --> B["Medium - particles"]
    B --> C["Wave travels through"]
    C --> D["Energy delivered!"]
    style A fill:#FF6B6B
    style D fill:#4ECDC4

↕️ Transverse Waves: The Up-and-Down Dancers

What Are Transverse Waves?

Remember shaking that jump rope? Notice how your hand moves up and down, but the wave travels sideways along the rope?

The Rule: In transverse waves, particles move perpendicular (at right angles) to the wave direction.

Simple Analogy: Imagine a line of friends doing “the wave” at a sports game:

• Your friends stand up and sit down (up-down motion)
• But the wave travels sideways around the stadium!

Examples:

• 🌊 Waves on water surface (water goes up-down, wave goes forward)
• 💡 Light waves (though these don’t need a medium!)
• 🪢 Waves on a rope or string

Picture This:

Direction wave travels →→→→→
    ∧     ∧     ∧
   / \   / \   / \
  /   \ /   \ /   \
Particles move ↑↓ (up and down)

↔️ Longitudinal Waves: The Push-Pull Crowd

What Are Longitudinal Waves?

Now imagine a Slinky toy. You push one end forward, then pull it back. A wave of squished coils travels along the Slinky!

The Rule: In longitudinal waves, particles move in the same direction as the wave travels (back and forth).

Simple Analogy: Think of a long line of people at a concert. Someone at the back pushes forward—everyone gets pushed a little, then springs back. The “push” travels to the front, but nobody actually walks forward!

The Two Parts:

• Compression: Where particles are squished together (like a crowd pushing)
• Rarefaction: Where particles are spread apart (like the crowd relaxing)

Examples:

• 🔊 Sound waves (air particles push back and forth)
• 🧸 Slinky waves when you push/pull
• 🌍 P-waves in earthquakes

graph LR
    A["Push"] --> B["||||dense||||"]
    B --> C["|  spread  |"]
    C --> D["||||dense||||"]
    D --> E["|  spread  |"]

📐 Wave Parameters: Measuring Our Waves

Every wave has a “personality” described by these measurements:

1. Wavelength (λ - lambda)

What is it? The distance of one complete wave cycle—from one peak to the next peak.

Analogy: Like measuring the distance between two mountaintops in a row.

Units: Meters (m)

2. Amplitude (A)

What is it? The height of the wave from the middle (rest position) to the peak.

Analogy: How tall the mountain is from the flat ground.

Key Point: Bigger amplitude = More energy! A gentle wave vs. a tsunami!

3. Frequency (f)

What is it? How many complete waves pass by in one second.

Analogy: If you count “how many waves hit the beach per second”—that’s frequency!

Units: Hertz (Hz) = waves per second

4. Period (T)

What is it? The time for ONE complete wave to pass.

Relationship: T = 1/f (Period and frequency are opposites!)

Example: If 2 waves pass per second (f = 2 Hz), each wave takes 0.5 seconds (T = 0.5 s)

graph TD
    A["Wave Parameters"] --> B["Wavelength λ"]
    A --> C["Amplitude A"]
    A --> D["Frequency f"]
    A --> E["Period T"]
    B --> F["Distance of one cycle"]
    C --> G["Height = Energy"]
    D --> H["Waves per second"]
    E --> I["Time for one wave"]

⚡ The Wave Equation: The Master Formula

Here’s the magic formula that connects wave speed, frequency, and wavelength:

v = f × λ

Think of it like a train:

• Frequency = How many train cars pass you per second
• Wavelength = How long each train car is
• Speed = How fast the train is going

If more cars pass per second (higher f) but the train speed stays the same, each car must be shorter (smaller λ)!

Example Problem: A wave has frequency 5 Hz and wavelength 2 m. How fast is it moving?

• v = f × λ = 5 × 2 = 10 m/s ✓

🏃 Wave Speed: How Fast Waves Travel

What Determines Wave Speed?

Wave speed depends on the medium, not the wave itself!

The Rule: Waves travel at different speeds through different materials.

Simple Examples:

• Sound in air: ~340 m/s (walking speed compared to…)
• Sound in water: ~1,500 m/s (faster! Water is denser)
• Sound in steel: ~5,000 m/s (fastest! Solid is most connected)

Why? In denser, stiffer materials, particles are packed tighter and can “pass the message” faster—like a firm handshake vs. a loose one!

For Waves on a String

Speed depends on:

• Tension (T): Tighter string = Faster waves
• Linear density (μ): Heavier string = Slower waves

Formula: v = √(T/μ)

🔊 Speed of Sound: When Waves Talk to Us

Sound Waves Are Special Mechanical Waves

Sound is a longitudinal wave that travels through air (or any medium).

Speed of Sound in Air at 20°C: approximately 343 m/s

What Affects Sound Speed?

*In general, sound is fastest in solids, slower in liquids, slowest in gases.

Temperature Formula (for air): v ≈ 331 + 0.6T (where T is temperature in °C)

Example: At 25°C: v ≈ 331 + 0.6(25) = 331 + 15 = 346 m/s

Fun Fact: Thunder and Lightning!

You see lightning instantly, but sound takes time to reach you.

• Count seconds between flash and thunder
• Divide by 3 = approximate distance in kilometers!

💡 Intensity of Waves: How Loud? How Bright?

What Is Intensity?

Intensity measures how much energy a wave delivers to a certain area each second.

Simple Analogy: Imagine spraying water from a hose:

• Close to the hose = Strong spray (high intensity)
• Far from the hose = Weak spray (low intensity)

Formula: I = P / A

The Inverse Square Law

Key Rule: When you double your distance from a wave source, intensity drops to 1/4!

I ∝ 1/r²

Why? The wave’s energy spreads out over a larger and larger area (like a balloon inflating).

graph TD
    A["Wave Source"] --> B["Distance r: Intensity I"]
    A --> C["Distance 2r: Intensity I/4"]
    A --> D["Distance 3r: Intensity I/9"]
    style A fill:#FF6B6B

Real Example:

• Standing 1 meter from a speaker: Intensity = 100 W/m²
• Standing 2 meters away: Intensity = 25 W/m² (1/4 of original)
• Standing 3 meters away: Intensity = 11.1 W/m² (1/9 of original)

Sound Intensity and Decibels

We measure sound loudness in decibels (dB)—a logarithmic scale.

Warning: Above 85 dB can damage your ears over time!

🎯 Quick Summary: Your Wave Toolkit

🌟 You Did It!

You now understand how waves carry energy through the universe—from the ripples in your bathtub to the music in your headphones to the light from distant stars!

Remember: Waves are everywhere, and now you speak their language! 🌊✨
