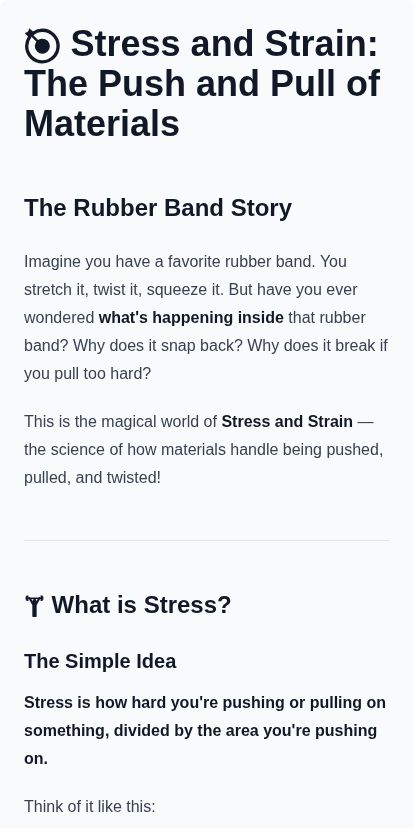

🎯 Stress and Strain: The Push and Pull of Materials
The Rubber Band Story
Imagine you have a favorite rubber band. You stretch it, twist it, squeeze it. But have you ever wondered what’s happening inside that rubber band? Why does it snap back? Why does it break if you pull too hard?
This is the magical world of Stress and Strain — the science of how materials handle being pushed, pulled, and twisted!
🏋️ What is Stress?
The Simple Idea
Stress is how hard you’re pushing or pulling on something, divided by the area you’re pushing on.
Think of it like this:
🎈 The Balloon Test: If you push on a balloon with your whole palm, nothing happens. But poke it with a sharp pin (same force, tiny area) — POP!
Same force, different stress. The pin creates much higher stress because the area is tiny.
The Formula
Stress (σ) = Force / Area
σ = F / A
Units: Pascals (Pa) or N/m²
Real Example
You push on a wall with 100 N of force. Your hand covers 0.01 m².
Stress = 100 N / 0.01 m²
= 10,000 Pa
That’s 10,000 Pascals of stress on the wall!
🎭 Types of Stress
Materials can be stressed in three main ways. Let’s meet them!
1. Tensile Stress (Pulling Apart) 🔗
When you stretch something — like pulling a rope or stretching a rubber band.
graph TD A["← PULL"] --> B["Material"] --> C["PULL →"]
Example: A bungee cord when you jump. It stretches and experiences tensile stress.
2. Compressive Stress (Squishing Together) 🗜️
When you push something from both sides — like squeezing a sponge or stacking books on a table.
graph TD A["PUSH →"] --> B["Material"] --> C["← PUSH"]
Example: The legs of a chair. Your weight creates compressive stress pushing down on them.
3. Shear Stress (Sliding Sideways) ✂️
When you try to make one part of something slide past another — like cutting with scissors or sliding a deck of cards.
graph TD A["→ Push Top"] B["Material Layer"] C["← Push Bottom"] A --> B B --> C
Example: Scissors cutting paper. The blades create shear stress that makes the paper separate.
📏 What is Strain?
The Simple Idea
Strain is how much something changes shape compared to its original size.
🧵 The String Story: You have a 1-meter string. You pull it and it becomes 1.1 meters. It stretched by 0.1 meters out of 1 meter. That’s a strain of 0.1 or 10%!
Key Point: Strain has no units — it’s just a ratio (change ÷ original).
The Formula
Strain (ε) = Change in Length / Original Length
ε = ΔL / L₀
Real Example
A 2-meter wire stretches to 2.004 meters when pulled.
Strain = (2.004 - 2) / 2
= 0.004 / 2
= 0.002 or 0.2%
The wire stretched by 0.2% of its length!
🎪 Types of Strain
Just like stress has types, strain has matching partners!
1. Tensile (Longitudinal) Strain 📐
When something gets longer from being pulled.
Tensile Strain = Increase in Length / Original Length
Example: A spring getting longer when you hang a weight on it.
2. Compressive Strain 📦
When something gets shorter from being squeezed.
Compressive Strain = Decrease in Length / Original Length
Example: A pillow getting thinner when you sit on it.
3. Shear Strain 🃏
When layers slide past each other — measured by the angle of tilt.
Shear Strain = tan(θ) ≈ θ (for small angles)
Example: A deck of cards when you push the top card sideways — all the cards tilt at an angle.
4. Volumetric Strain 🎈
When something’s total volume changes (from being squeezed from all sides).
Volumetric Strain = Change in Volume / Original Volume
Example: A submarine going deep underwater — the water pressure squeezes it from all sides, slightly reducing its volume.
⚖️ Elastic Moduli: The Stiffness Score
The Big Idea
Elastic modulus tells you how stiff a material is. Higher modulus = harder to deform.
🏗️ The Building Block Test: Steel is way harder to stretch than rubber. Steel has a much higher elastic modulus!
The Master Formula
Elastic Modulus = Stress / Strain
This gives us three special moduli for three types of stress:
1. Young’s Modulus (E) — For Stretching & Squishing
The most famous one! It measures resistance to stretching or compressing.
Young's Modulus (E) = Tensile Stress / Tensile Strain
E = (F/A) / (ΔL/L₀)
Units: Pascals (Pa)
| Material | Young’s Modulus |
|---|---|
| Rubber | ~0.01 GPa |
| Wood | ~10 GPa |
| Steel | ~200 GPa |
| Diamond | ~1,000 GPa |
Example: Why bridges use steel, not rubber!
2. Shear Modulus (G) — For Twisting & Sliding
Also called the Modulus of Rigidity. It measures resistance to shape change.
Shear Modulus (G) = Shear Stress / Shear Strain
Example: Why metal doorknobs don’t twist out of shape when you turn them.
3. Bulk Modulus (K) — For Squeezing From All Sides
Measures resistance to volume change under pressure.
Bulk Modulus (K) = Pressure / Volumetric Strain
K = -P / (ΔV/V₀)
The negative sign accounts for volume decreasing when pressure increases.
Example: Water is nearly incompressible — it has a very high bulk modulus. That’s why hydraulic brakes work!
🔄 Poisson’s Ratio: The Side Effect
The Surprise Discovery
When you stretch something, something weird happens on the sides!
🍝 The Pasta Test: When you pull a piece of soft dough, it gets longer but also gets thinner. The stretching in one direction causes shrinking in the other!
This “side effect” is measured by Poisson’s Ratio (ν).
The Formula
Poisson's Ratio (ν) = - (Lateral Strain / Longitudinal Strain)
ν = - (Δw/w₀) / (ΔL/L₀)
The negative sign makes ν positive (since lateral and longitudinal strains have opposite signs).
Typical Values
| Material | Poisson’s Ratio |
|---|---|
| Cork | ~0 |
| Rubber | ~0.5 |
| Steel | ~0.3 |
| Gold | ~0.44 |
Why Cork is Special: Cork barely shrinks when compressed! That’s why it’s perfect for wine bottles — it doesn’t thin out when squeezed in.
The Limits
Poisson’s ratio is usually between 0 and 0.5 for normal materials.
- ν = 0: No lateral change (like cork)
- ν = 0.5: Material keeps same volume (like rubber)
🎬 The Full Picture
graph TD A["Apply Force"] --> B{Type of Force?} B -->|Pull| C["Tensile Stress"] B -->|Push| D["Compressive Stress"] B -->|Slide| E["Shear Stress"] B -->|All sides| F["Pressure"] C --> G["Tensile Strain"] D --> H["Compressive Strain"] E --> I["Shear Strain"] F --> J["Volume Strain"] G --> K["Young's Modulus E] H --> K I --> L[Shear Modulus G] J --> M[Bulk Modulus K] G --> N[Poisson's Ratio ν"]
🌟 Quick Summary
| Concept | What It Means | Formula |
|---|---|---|
| Stress | Force per area | σ = F/A |
| Strain | Change per original | ε = ΔL/L₀ |
| Young’s Modulus | Stiffness (stretch) | E = σ/ε |
| Shear Modulus | Stiffness (twist) | G = τ/γ |
| Bulk Modulus | Stiffness (squeeze) | K = P/(ΔV/V) |
| Poisson’s Ratio | Side-effect ratio | ν = lateral/axial |
💡 Why This Matters
Every building, bridge, airplane, and phone case is designed using these concepts!
Engineers ask:
- “How much stress can this beam handle?”
- “How much will this cable stretch?”
- “Will this material crack or bend?”
Now you know the science behind it all! 🚀
🎯 Remember This!
Stress = Force ÷ Area (how hard you’re pushing)
Strain = Change ÷ Original (how much it changed)
Modulus = Stress ÷ Strain (how stiff it is)
Poisson’s Ratio = How much the sides change when you stretch the length
You’ve just unlocked the secrets of how materials behave! 🔓
