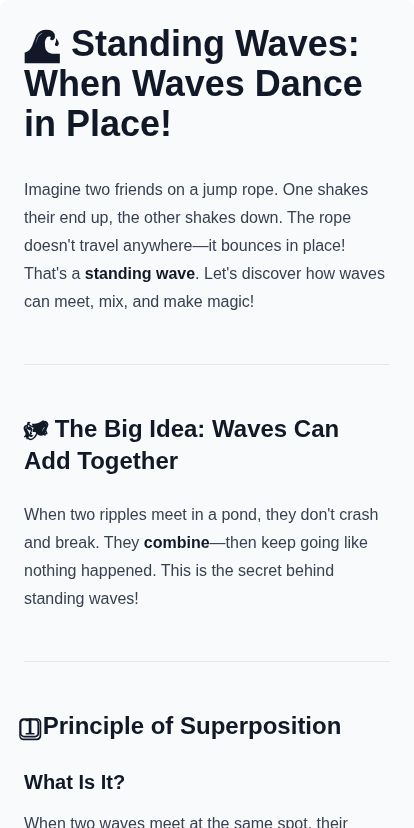

🌊 Standing Waves: When Waves Dance in Place!
Imagine two friends on a jump rope. One shakes their end up, the other shakes down. The rope doesn’t travel anywhere—it bounces in place! That’s a standing wave. Let’s discover how waves can meet, mix, and make magic!
🎭 The Big Idea: Waves Can Add Together
When two ripples meet in a pond, they don’t crash and break. They combine—then keep going like nothing happened. This is the secret behind standing waves!
1️⃣ Principle of Superposition
What Is It?
When two waves meet at the same spot, their heights add up.
Think of it like this:
- You’re on a trampoline
- Two friends push down at the same time
- You bounce EXTRA high because their pushes combined!
The Simple Rule
| Wave 1 | Wave 2 | Result |
|---|---|---|
| +2 | +3 | +5 (bigger!) |
| +2 | -2 | 0 (cancel out!) |
| -1 | -3 | -4 (deeper dip!) |
Example: Two ocean waves, each 1 meter tall, meet head-on. For a split second, you see a 2-meter wave! Then they pass through each other and continue separately.
2️⃣ Interference: When Waves Meet
Interference is what happens when waves combine. There are two types:
🟢 Constructive Interference
Waves help each other get bigger!
Peak meets Peak = SUPER PEAK! 🚀
∧ ∧ ∧∧
/ \ + / \ = / \
/ \ / \ / \
Real Life: Surfers love this! Two small waves combine into one big rideable wave.
🔴 Destructive Interference
Waves cancel each other out!
Peak meets Valley = FLAT! 😴
∧
/ \ + \/ = ___
/ \ / \
Real Life: Noise-canceling headphones use this! They make a wave that’s the exact opposite of noise, and—silence!
3️⃣ Wave Behaviors
Waves don’t just travel in straight lines. They can:
🔄 Reflect
Bounce back like a ball off a wall.
Example: Shout in a canyon. Your voice bounces back as an echo!
🌀 Refract
Bend when entering a new material.
Example: A straw looks “broken” in a glass of water.
📡 Diffract
Spread around corners and obstacles.
Example: You can hear someone talking around a doorway even though you can’t see them.
graph TD A["Wave Hits Obstacle"] --> B{What Happens?} B --> C["Reflects - Bounces Back"] B --> D["Refracts - Bends"] B --> E["Diffracts - Spreads"]
4️⃣ Standing Wave Formation
Now for the magic! Here’s how standing waves are born:
The Recipe
- Send a wave down a string (or in a tube)
- Wave hits the end and bounces back
- Original + reflected wave meet and interfere
- They combine into a wave that doesn’t travel—it vibrates in place!
Why “Standing”?
The wave pattern stays still. Some spots bounce wildly. Other spots don’t move at all. It looks like the wave is standing there, dancing!
Everyday Example: Hold one end of a jump rope tied to a fence. Shake your hand at just the right speed. The rope makes beautiful loops that stay in place!
graph TD A["You Shake String"] --> B["Wave Travels Right"] B --> C["Wave Hits Fixed End"] C --> D["Wave Reflects Back"] D --> E["Two Waves Overlap"] E --> F["Standing Wave Forms!"]
5️⃣ Standing Wave Characteristics
Standing waves have special parts with special names:
🔵 Nodes
Points that never move. Zero vibration. Always still.
🔴 Antinodes
Points that vibrate the most. Maximum motion. Wild dancing!
ANTINODE NODE ANTINODE NODE ANTINODE
🔴 🔵 🔴 🔵 🔴
∧ ∧ ∧
/ \ / \ / \
/ \______________/ \______________/ \
(this part (this part
doesn't doesn't
move) move)
Key Facts
| Feature | Node | Antinode |
|---|---|---|
| Movement | None | Maximum |
| Location | Between loops | Center of loops |
| Amplitude | 0 | Highest |
Example: On a guitar string, nodes are the still points. Antinodes are where the string swings the widest!
6️⃣ Harmonics and Overtones
When you pluck a guitar string, it doesn’t make just one sound. It vibrates in multiple patterns at once!
The Fundamental (1st Harmonic)
The simplest vibration pattern. One big loop.
- Has 2 nodes (at both ends)
- Has 1 antinode (in the middle)
- Makes the lowest pitch
Overtones (Higher Harmonics)
More complex patterns with more loops.
| Harmonic | Loops | Nodes | Frequency |
|---|---|---|---|
| 1st (Fundamental) | 1 | 2 | f |
| 2nd | 2 | 3 | 2f |
| 3rd | 3 | 4 | 3f |
| 4th | 4 | 5 | 4f |
1st Harmonic:
___∧___
| |
2nd Harmonic:
_∧_ _∧_
| \/ |
3rd Harmonic:
_∧_ _∧_ _∧_
| X X |
Example: When you blow across a bottle, you hear the fundamental. Blow harder, and you might hear a higher harmonic—same bottle, higher pitch!
7️⃣ Vibration of Strings
Guitar strings, violin strings, piano wires—they all follow the same rules!
The Formula for String Frequency
f = (n × v) / (2L)
Where:
- f = frequency (how fast it vibrates)
- n = harmonic number (1, 2, 3…)
- v = wave speed on the string
- L = length of the string
What Affects the Sound?
| Change This | Effect on Pitch |
|---|---|
| Shorter string | Higher pitch |
| Tighter string | Higher pitch |
| Thinner string | Higher pitch |
| Longer string | Lower pitch |
| Looser string | Lower pitch |
| Thicker string | Lower pitch |
Example:
- Guitar: Press a fret to shorten the string → higher note!
- Piano: Bass notes have long, thick strings. Treble notes have short, thin strings.
graph TD A["String Vibration"] --> B{What Changes Pitch?} B --> C["Length: Shorter = Higher"] B --> D["Tension: Tighter = Higher"] B --> E["Thickness: Thinner = Higher"]
8️⃣ Organ Pipes
Organ pipes are tubes that make sound using standing waves of air instead of strings!
Two Types of Pipes
🔓 Open Pipe (Both Ends Open)
- Antinodes at both ends (air can move freely)
- All harmonics possible (1st, 2nd, 3rd, 4th…)
- Richer, fuller sound
Open Pipe (Fundamental):
ANTINODE ANTINODE
🔴 NODE 🔴
\ | /
\______|______/
🔵
🔒 Closed Pipe (One End Closed)
- Node at closed end (air can’t move there)
- Antinode at open end (air moves freely)
- Only odd harmonics (1st, 3rd, 5th…)
- Different, hollow sound
Closed Pipe (Fundamental):
NODE ANTINODE
🔵________________________🔴
| (closed end) (open end) |
Pipe Formulas
Open Pipe:
f = (n × v) / (2L) where n = 1, 2, 3, 4...
Closed Pipe:
f = (n × v) / (4L) where n = 1, 3, 5, 7...
| Pipe Type | Harmonics | Fundamental Length |
|---|---|---|
| Open | All (1,2,3,4…) | L = λ/2 |
| Closed | Odd only (1,3,5…) | L = λ/4 |
Example:
- Flute (open both ends): Bright, full range of harmonics
- Clarinet (closed at reed end): Darker, only odd harmonics
- Pan flute: Different length tubes = different notes!
🎯 Quick Summary
| Concept | Key Point |
|---|---|
| Superposition | Waves add together when they meet |
| Constructive | Peak + Peak = Bigger wave |
| Destructive | Peak + Valley = Cancellation |
| Standing Wave | Wave that vibrates in place |
| Node | Point of zero movement |
| Antinode | Point of maximum movement |
| Harmonics | Multiple vibration patterns |
| Strings | Shorter/tighter/thinner = higher pitch |
| Open Pipe | All harmonics, antinodes at ends |
| Closed Pipe | Odd harmonics only, node at closed end |
🌟 You Did It!
Now you understand how waves can dance together, cancel out, and create beautiful standing patterns! Next time you hear a guitar, see a jump rope, or hear an organ in a church—you’ll know the science behind the magic! 🎸🎹🎵
