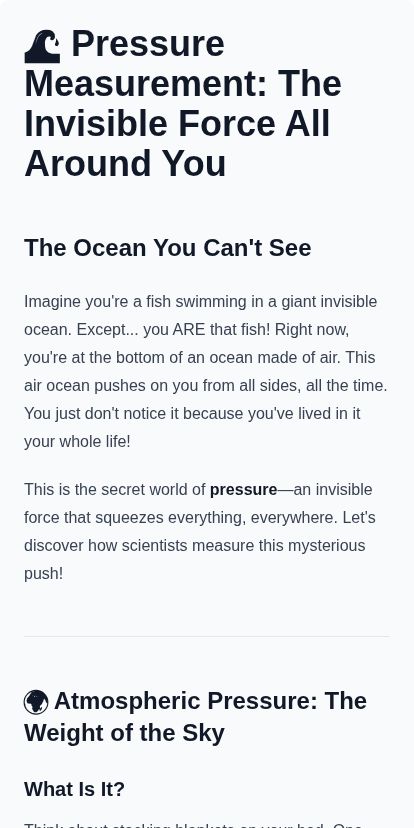

🌊 Pressure Measurement: The Invisible Force All Around You

The Ocean You Can’t See

Imagine you’re a fish swimming in a giant invisible ocean. Except… you ARE that fish! Right now, you’re at the bottom of an ocean made of air. This air ocean pushes on you from all sides, all the time. You just don’t notice it because you’ve lived in it your whole life!

This is the secret world of pressure—an invisible force that squeezes everything, everywhere. Let’s discover how scientists measure this mysterious push!

🌍 Atmospheric Pressure: The Weight of the Sky

What Is It?

Think about stacking blankets on your bed. One blanket? Light. Ten blankets? Heavy!

Now imagine stacking air. Not one layer, not ten layers, but MILES of air stacked on top of you. That’s atmospheric pressure—the weight of all the air above you pressing down.

The Amazing Discovery

Evangelista Torricelli (a curious scientist in 1643) asked: “How heavy IS the air?”

He filled a glass tube with mercury (a super-heavy liquid metal), flipped it upside down into a bowl, and watched. The mercury dropped… but not all the way! It stopped at exactly 760 millimeters.

Why? The air pressing on the bowl was strong enough to hold up that column of mercury. The air has WEIGHT!

Simple Example

Drinking through a straw:

• You suck air OUT of the straw
• The air pressure OUTSIDE pushes liquid UP into your mouth
• You’re not really “sucking”—the atmosphere is PUSHING!

The Magic Number

At sea level, atmospheric pressure equals:

• 101,325 Pascals (Pa)
• 1 atmosphere (atm)
• 760 mmHg (millimeters of mercury)
• 1013 millibars (mb)

graph TD
    A["🌤️ Miles of Air Above You"] --> B["All That Air Has Weight"]
    B --> C["Weight Creates Pressure"]
    C --> D["101,325 Pa at Sea Level"]
    D --> E["Pushes on Everything!"]

Real Life Uses

• Weather forecasting: Low pressure = storms coming!
• Airplane cabins: Must be pressurized so you can breathe
• Cooking: Pressure cookers trap steam, cook faster

🏊 Hydrostatic Pressure: Going Deep

What Is It?

Remember those stacked blankets? Now imagine stacking WATER instead of air. Water is much heavier than air!

Hydrostatic pressure is the pressure from liquids (like water) pushing on you. The deeper you go, the more water piles on top—and the harder it squeezes.

The Simple Rule

Every 10 meters you dive deeper, pressure increases by about 1 atmosphere!

The Magic Formula

P = ρgh

Don’t panic! It’s simple:

• P = Pressure (what we want to find)
• ρ (rho) = How dense the liquid is (water = 1000 kg/m³)
• g = Gravity (10 m/s²)
• h = How deep you are

Simple Example

Swimming pool dive:

• You dive 2 meters deep
• ρ = 1000 kg/m³, g = 10 m/s², h = 2 m
• P = 1000 × 10 × 2 = 20,000 Pa extra!
• That’s on TOP of atmospheric pressure

Why Ears Pop Underwater

Your body has air pockets (ears, sinuses). When water squeezes harder from outside, those air pockets get compressed. That’s the “pop” feeling!

graph TD
    A["🏊 Dive Deeper"] --> B["More Water Above"]
    B --> C["More Weight Pushing Down"]
    C --> D["Higher Pressure"]
    D --> E["Ears Feel Squeezed!"]

Key Insight

Hydrostatic pressure only depends on DEPTH, not width! A tiny tube of water 10m tall creates the same bottom pressure as a giant swimming pool 10m deep.

📊 Manometers: The Pressure Detectors

What Is It?

A manometer is like a pressure detective. It uses liquid in a tube to measure pressure differences. Think of it as a “pressure see-saw.”

How It Works

Imagine a U-shaped tube half-filled with liquid:

1. Both sides open to air → Liquid level is EQUAL (same pressure on both sides)
2. Connect one side to a gas → If gas pressure is HIGHER, it pushes liquid DOWN on its side, UP on the other side
3. Measure the difference → The height difference tells you the pressure!

Types of Manometers

Open Manometer:

• One side connected to gas you’re measuring
• Other side open to atmosphere
• Measures pressure RELATIVE to atmosphere

Closed Manometer:

• One side sealed (vacuum or known pressure)
• Measures ABSOLUTE pressure

Simple Example

Checking a bike tire:

• Connect manometer to tire valve
• If liquid rises 20 cm higher on the open side
• Gas pressure = Atmospheric + (ρgh for 20cm of liquid)

graph TD
    A["🔧 Manometer"] --> B["U-Shaped Tube with Liquid"]
    B --> C["One Side: Gas to Measure"]
    B --> D["Other Side: Reference Air"]
    C --> E["Compare Liquid Heights"]
    D --> E
    E --> F["Height Difference = Pressure Difference!"]

Reading a Manometer

• Higher on gas side? Gas pressure is LOWER than atmosphere
• Higher on open side? Gas pressure is HIGHER than atmosphere
• Same level? Gas pressure EQUALS atmosphere

🌡️ Barometers: Weather Predictors

What Is It?

A barometer is a special tool that measures atmospheric pressure. It’s basically a manometer comparing air pressure to… nothing (a vacuum)!

The Original: Mercury Barometer

Remember Torricelli’s experiment? That WAS the first barometer!

How it works:

1. Glass tube filled with mercury, flipped upside down in a bowl
2. Mercury drops, leaving vacuum at top
3. Air pressure pushes on bowl, holds mercury up
4. Height of mercury = atmospheric pressure

At sea level: Mercury stands at 760 mm (29.92 inches)

Aneroid Barometer (No Liquid!)

Aneroid means “without liquid.” Instead of mercury:

1. A small metal box with most air removed
2. When air pressure rises → box squishes flat
3. When air pressure drops → box expands
4. A dial connected to the box shows the pressure

This is what you see on most wall barometers!

Simple Example

Weather watching:

• Morning: Barometer reads 1015 mb
• Evening: Barometer reads 1005 mb
• Pressure is FALLING!
• Translation: Storm likely coming

Pressure and Weather

graph TD
    A["☀️ High Pressure 1020+ mb"] --> B["Air Sinks"]
    B --> C["Clouds Dissipate"]
    C --> D["Clear Sunny Weather!"]

    E["🌧️ Low Pressure 1000- mb"] --> F["Air Rises"]
    F --> G["Clouds Form"]
    G --> H["Rain or Storms!"]

Why Pressure Changes Weather

• High pressure = Air is dense, heavy, sinks downward, pushes clouds away
• Low pressure = Air is light, rises upward, pulls moisture up to make clouds

🧠 Connecting It All

The Big Picture

All pressure measurement is about ONE thing: comparing forces!

graph TD
    A["🌍 PRESSURE MEASUREMENT"] --> B["Atmospheric Pressure"]
    A --> C["Hydrostatic Pressure"]
    A --> D["Measuring Tools"]

    B --> E["Weight of Air Above"]
    C --> F["Weight of Liquid Above"]

    D --> G["Manometer"]
    D --> H["Barometer"]

    G --> I["Compares Two Pressures"]
    H --> J["Measures Air Pressure vs Vacuum"]

Remember This!

🚀 You’re Now a Pressure Expert!

You understand that:

1. You live in an air ocean that constantly pushes on you (atmospheric pressure)
2. Diving deeper means more squeeze because more water piles above (hydrostatic pressure)
3. U-tubes with liquid can compare pressures like a see-saw (manometers)
4. Mercury in a tube tells us the air’s weight and predicts weather (barometers)

Next time you drink through a straw, check the weather, or swim underwater—you’ll know the invisible forces at play!

The invisible ocean is now visible to you. 🌊
