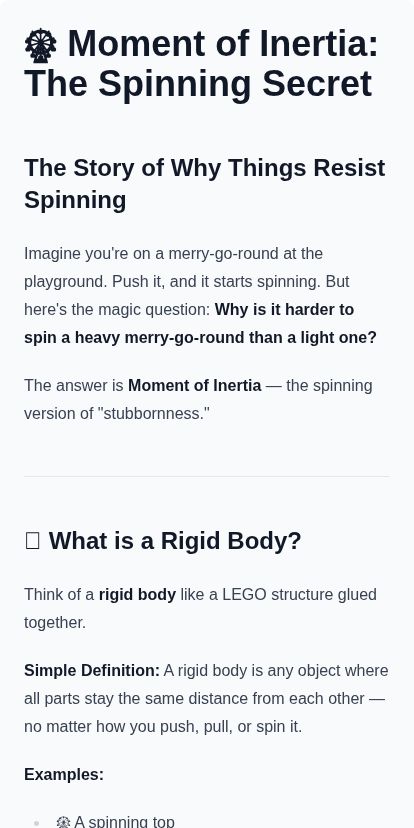

🎡 Moment of Inertia: The Spinning Secret
The Story of Why Things Resist Spinning
Imagine you’re on a merry-go-round at the playground. Push it, and it starts spinning. But here’s the magic question: Why is it harder to spin a heavy merry-go-round than a light one?
The answer is Moment of Inertia — the spinning version of “stubbornness.”
🧱 What is a Rigid Body?
Think of a rigid body like a LEGO structure glued together.
Simple Definition: A rigid body is any object where all parts stay the same distance from each other — no matter how you push, pull, or spin it.
Examples:
- 🎡 A spinning top
- 🚪 A door swinging on hinges
- ⚙️ A bicycle wheel
- 🏏 A cricket bat
What’s NOT rigid?
- A rubber band (stretches)
- Water (flows apart)
- A chain (bends)
Key Idea: In rigid bodies, when one part moves, EVERY part moves together. Like dance partners holding hands!
🔄 Rotational Motion Basics
Spinning vs. Sliding
There are two ways things can move:
| Linear Motion | Rotational Motion |
|---|---|
| Moving in a straight line | Spinning around a point |
| A ball rolling across the floor | A ball spinning in place |
| You walking forward | You twirling around |
The Axis of Rotation
Every spinning thing has an invisible line running through it — the axis of rotation.
graph TD A["🎡 Spinning Top"] --> B["Axis runs through center"] B --> C["Top spins AROUND this line"] C --> D["Like a skewer through food"]
Real Examples:
- 🌍 Earth spins around its North-South axis
- 🚪 A door spins around its hinges
- 🎯 A ceiling fan spins around its center
Three Key Quantities in Rotation
| Linear World | Rotational World | What it measures |
|---|---|---|
| Distance (m) | Angle θ (radians) | How far you’ve turned |
| Speed (m/s) | Angular velocity ω (rad/s) | How fast you’re spinning |
| Acceleration (m/s²) | Angular acceleration α (rad/s²) | How quickly spin changes |
Quick Formula:
- One full spin = 360° = 2π radians
- Angular velocity ω = θ / t
🎯 Moment of Inertia Basics
The Big Idea
Moment of Inertia (I) tells you: “How hard is it to start or stop something spinning?”
Think of it as rotational stubbornness.
The Door Experiment 🚪
Try this at home:
- Push a door near the hinges — very hard to move!
- Push a door near the handle — easy!
Why? Because where the mass is located matters for spinning!
The Simple Formula
For a single point mass:
I = m × r²
Where:
- I = Moment of Inertia
- m = mass (how heavy)
- r = distance from the rotation axis
The “squared” is key! Double the distance, and the moment of inertia becomes 4 times bigger (2² = 4)
Why Does Distance Matter So Much?
graph TD A["Same mass, different positions"] --> B["Close to axis: Easy to spin"] A --> C["Far from axis: Hard to spin"] B --> D["Small I"] C --> E["Large I"]
Example: Figure Skater ⛸️
- Arms OUT → Big I → Spins slowly
- Arms IN → Small I → Spins fast!
The mass is the same, but moving it closer to the axis makes spinning easier!
📏 Radius of Gyration
What’s This Fancy Name?
Radius of Gyration (k) is a way to simplify complicated shapes.
The Idea: Imagine taking ALL the mass of an object and squishing it into a single ring at distance k from the axis. That distance k is the radius of gyration.
The Formula
I = M × k²
Where:
- I = Moment of Inertia
- M = Total mass
- k = Radius of gyration
Rearranging: k = √(I / M)
Why Is It Useful?
| Shape | Radius of Gyration (k) |
|---|---|
| Solid cylinder (axis through center) | k = R/√2 |
| Hollow cylinder | k = R |
| Solid sphere | k = R × √(2/5) |
| Thin rod (center) | k = L/(2√3) |
Think of it this way:
- Radius of gyration tells you the “effective distance” where the mass acts
- A smaller k means mass is packed closer to the axis → easier to spin
📐 Moment of Inertia Theorems
Two powerful shortcuts that save you from hard math!
Theorem 1: Parallel Axis Theorem
The Problem: You know the moment of inertia through the center of an object. But what if you spin it around a different axis?
The Solution:
I = I_cm + M × d²
Where:
- I = Moment of inertia about new axis
- I_cm = Moment of inertia about center of mass
- M = Total mass
- d = Distance between the two axes
graph TD A["Center axis: I_cm"] --> B["Move axis by distance d"] B --> C["New axis: I = I_cm + Md²"] C --> D["Always BIGGER than center!"]
Example: A meter stick
- Through center: I_cm = (1/12) × M × L²
- Through one end: I = I_cm + M × (L/2)²
- Through end: I = (1/12)ML² + (1/4)ML² = (1/3)ML²
Theorem 2: Perpendicular Axis Theorem
Only for flat objects! (Like a disc or rectangular sheet)
The Formula:
I_z = I_x + I_y
The moment of inertia about an axis perpendicular to the flat object equals the sum of moments of inertia about two perpendicular axes in the plane.
graph TD A["Flat disc on table"] --> B["x-axis: left-right"] A --> C["y-axis: front-back"] A --> D["z-axis: up through center"] B --> E["I_x + I_y = I_z"] C --> E
Example: A circular disc
- I_x = I_y = (1/4)MR² (by symmetry)
- I_z = I_x + I_y = (1/2)MR²
🧮 Moment of Inertia Calculations
Common Shapes — Memorize These!
1. Point Mass
I = mr²
The simplest case. All mass at one point, distance r from axis.
2. Thin Rod (axis through center)
I = (1/12) × M × L²
←————— L —————→
[========|========]
axis
3. Thin Rod (axis through end)
I = (1/3) × M × L²
[================]→
axis ← L →
4. Circular Ring (axis through center)
I = M × R²
All mass is at the same distance R from center.
5. Solid Disc/Cylinder (axis through center)
I = (1/2) × M × R²
Mass is spread from center to edge, so average effect is less than MR².
6. Hollow Sphere (axis through center)
I = (2/3) × M × R²
7. Solid Sphere (axis through center)
I = (2/5) × M × R²
Quick Reference Table
| Shape | Axis | Moment of Inertia |
|---|---|---|
| Point mass | At distance r | mr² |
| Thin rod | Center, perpendicular | (1/12)ML² |
| Thin rod | End, perpendicular | (1/3)ML² |
| Ring | Center, perpendicular | MR² |
| Disc | Center, perpendicular | (1/2)MR² |
| Disc | Diameter | (1/4)MR² |
| Solid sphere | Diameter | (2/5)MR² |
| Hollow sphere | Diameter | (2/3)MR² |
| Solid cylinder | Length axis | (1/2)MR² |
Worked Example
Problem: A solid disc has mass 2 kg and radius 0.5 m. Find its moment of inertia about: a) An axis through its center perpendicular to the disc b) An axis through its edge perpendicular to the disc
Solution:
a) Through center: I_cm = (1/2) × M × R² I_cm = (1/2) × 2 × (0.5)² I_cm = (1/2) × 2 × 0.25 I_cm = 0.25 kg⋅m²
b) Through edge (use Parallel Axis Theorem): I = I_cm + M × d² I = 0.25 + 2 × (0.5)² I = 0.25 + 0.5 I = 0.75 kg⋅m²
🎪 The Big Picture
graph TD A["Moment of Inertia"] --> B["Depends on Mass"] A --> C["Depends on Shape"] A --> D["Depends on Axis Position"] B --> E["More mass = Higher I"] C --> F["Mass far from axis = Higher I"] D --> G["Off-center axis = Higher I"] E --> H["Harder to spin!"] F --> H G --> H
Remember These Key Points:
- Rigid bodies keep their shape — all particles move together
- Moment of Inertia = Resistance to spinning = m × r²
- Distance matters MORE than mass (r is squared!)
- Radius of Gyration = The “effective radius” where mass acts
- Parallel Axis Theorem = Shift axis → I increases by Md²
- Perpendicular Axis Theorem = For flat objects: I_z = I_x + I_y
The Ultimate Analogy 🎡
Think of moment of inertia like a lazy merry-go-round:
- Heavy kids far from center → Very hard to spin (High I)
- Light kids close to center → Easy to spin (Low I)
- Moving axis to the edge → Even harder! (Parallel axis theorem)
🌟 You’ve Got This!
You now understand why figure skaters spin faster with arms in, why doors have handles far from hinges, and why wheels are designed with mass at the center.
Moment of Inertia isn’t just physics — it’s the secret behind every spin in the universe!
