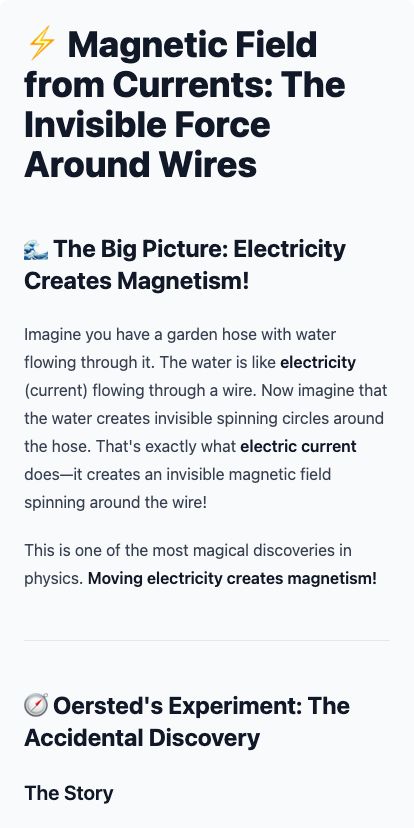

⚡ Magnetic Field from Currents: The Invisible Force Around Wires
🌊 The Big Picture: Electricity Creates Magnetism!
Imagine you have a garden hose with water flowing through it. The water is like electricity (current) flowing through a wire. Now imagine that the water creates invisible spinning circles around the hose. That’s exactly what electric current does—it creates an invisible magnetic field spinning around the wire!
This is one of the most magical discoveries in physics. Moving electricity creates magnetism!
🧭 Oersted’s Experiment: The Accidental Discovery
The Story
In 1820, a Danish scientist named Hans Christian Oersted was teaching a class. He had a compass on his table and a wire carrying electricity nearby.
Something strange happened!
When he turned on the current, the compass needle moved! 😲
This was HUGE. Before this, everyone thought electricity and magnetism were completely different things. Oersted showed they are best friends—connected forever!
What Oersted Proved
- Electric current creates a magnetic field around the wire
- The compass needle points in the direction of this field
- Turn off the current → magnetic field disappears
- The field forms circles around the wire
Simple Example
Hold a wire with current flowing through it. Place a compass near it. The compass doesn’t point north anymore—it points along the invisible circles around the wire!
graph TD A["Wire with Current"] --> B["Creates Magnetic Field"] B --> C["Compass Needle Moves"] C --> D["Proves Electricity Creates Magnetism"]
📐 Biot-Savart Law: The Math Behind the Magic
What Is It?
The Biot-Savart Law tells us exactly how strong the magnetic field is at any point near a wire carrying current.
Think of it like this: If you’re near a campfire, you can calculate how warm you’ll feel. The Biot-Savart Law calculates how “strong” the magnetism is at any spot.
The Key Ideas
- Closer to wire = Stronger magnetic field
- More current = Stronger magnetic field
- Field gets weaker as you move away (follows the inverse square pattern)
The Formula (Simplified)
The magnetic field from a tiny piece of wire:
dB = (μ₀/4π) × (I × dl × sinθ) / r²
Where:
- μ₀ = A special constant (permeability of free space)
- I = Current (how much electricity flows)
- dl = A tiny piece of the wire
- r = Distance from the wire
- θ = Angle between wire and the point
Simple Example
If you double the current, the magnetic field becomes twice as strong. If you move twice as far from the wire, the field becomes four times weaker.
👍 Right-Hand Rules: Your Built-In Compass
Why Do We Need Rules?
Magnetic fields have a direction. They spin around wires in circles. But which way? Clockwise or counterclockwise?
Your right hand is the answer!
Rule #1: For a Straight Wire
- Point your thumb in the direction current flows
- Curl your fingers around the wire
- Your fingers show the direction of the magnetic field
Rule #2: For a Coil/Loop
- Curl your fingers in the direction current flows around the loop
- Your thumb points to the North Pole of the magnet created
Simple Example
Current flows UP through a wire. Point your right thumb UP. Your fingers curl counterclockwise (when looking from above). That’s the magnetic field direction!
graph TD A["Current Direction"] --> B["Thumb Points Along Current"] B --> C["Fingers Curl Around Wire"] C --> D["Fingers Show Field Direction"]
📏 Straight Conductor Field: Simple and Beautiful
The Pattern
When current flows through a straight wire, the magnetic field forms perfect concentric circles around it.
Imagine dropping a stone in water. The ripples spread in circles. The magnetic field around a straight wire is just like those ripples—circles centered on the wire!
Key Facts
- Field lines are circles centered on the wire
- Field is strongest closest to the wire
- Field gets weaker as you move away
- Direction follows the right-hand rule
The Formula
For a long straight wire:
B = (μ₀ × I) / (2π × r)
Where:
- B = Magnetic field strength
- I = Current
- r = Distance from wire
Simple Example
A wire carries 10 Amperes. At 1 cm from the wire, the field has a certain strength. At 2 cm, the field is half as strong. At 10 cm, it’s one-tenth as strong.
⭕ Circular Loop Field: Creating a Mini-Magnet
The Pattern
When you bend a wire into a circle and pass current through it, something beautiful happens. The magnetic field looks like a tiny bar magnet!
One side becomes the North pole, the other side becomes the South pole.
Key Facts
- The field is strongest at the center of the loop
- Field lines come out of one side (North) and enter the other (South)
- More current = Stronger field
- Bigger loop = Different field pattern
The Formula (At the Center)
B = (μ₀ × I) / (2 × R)
Where:
- R = Radius of the loop
Simple Example
A circular wire loop with 5 Amperes of current acts like a tiny magnet. If you hang it freely, it would try to align with Earth’s magnetic field, just like a compass!
graph TD A["Circular Current Loop"] --> B["Creates North Pole on One Side"] A --> C["Creates South Pole on Other Side"] B --> D["Acts Like a Bar Magnet"] C --> D
🌀 Solenoid Field: The Super-Magnet
What Is a Solenoid?
A solenoid is a wire wound into a coil—like a spring or slinky! When current flows through it, it becomes a powerful magnet.
Why Is It Special?
- Inside the solenoid, the magnetic field is nearly uniform (same everywhere)
- It’s like having a really strong bar magnet you can turn on and off
- Used in doorbells, car starters, and MRI machines!
Key Facts
- Field inside is strong and uniform
- Field outside is very weak
- More turns of wire = Stronger field
- More current = Stronger field
The Formula (Inside)
B = μ₀ × n × I
Where:
- n = Number of turns per unit length
- I = Current
Simple Example
A solenoid with 100 turns per centimeter and 2 Amperes creates a strong uniform field inside. This is how electromagnets in junkyards can pick up cars!
🍩 Toroid Field: The Donut Magnet
What Is a Toroid?
A toroid is a solenoid bent into a circle—shaped like a donut! 🍩
Why Is It Special?
- The magnetic field is completely contained inside the donut
- No field leaks outside
- Perfect for devices that shouldn’t interfere with nearby electronics
Key Facts
- Field exists only inside the toroid (in the donut part)
- Outside the toroid = Zero magnetic field
- Field is stronger near the inner edge
- Used in transformers and inductors
The Formula (Inside)
B = (μ₀ × N × I) / (2π × r)
Where:
- N = Total number of turns
- r = Distance from center of the toroid
Simple Example
A toroid transformer in your phone charger uses this principle. The magnetic field stays inside the donut, making it efficient and safe!
graph TD A["Toroid = Donut-Shaped Coil"] --> B["Field Only Inside"] B --> C["No Leakage Outside"] C --> D["Used in Transformers"]
🔄 Ampere’s Circuital Law: The Shortcut Formula
What Is It?
Ampere’s Circuital Law is a powerful shortcut. Instead of using the complicated Biot-Savart Law, sometimes we can use this simpler rule!
Think of it like this: Instead of measuring every drop of water in a river, you can just measure how much water crosses a bridge. Same idea!
The Law (In Words)
If you walk in a complete circle around some wires, the total magnetic field you encounter depends on how much current is enclosed by your path.
The Formula
∮ B · dl = μ₀ × I_enclosed
This means: Walk in a closed loop, add up all the magnetic field, and it equals a constant times the current inside your loop.
When to Use It
Ampere’s Law works best for symmetric situations:
- Straight wires
- Solenoids
- Toroids
Simple Example
Draw an imaginary circle around a wire. Walk around the circle and “add up” the magnetic field. The answer tells you exactly how much current flows through the wire!
🎯 Putting It All Together
| Concept | What It Does | Key Formula |
|---|---|---|
| Oersted’s Experiment | Proved current creates magnetism | — |
| Biot-Savart Law | Calculates B-field precisely | dB = (μ₀/4π)(I dl sinθ)/r² |
| Right-Hand Rule | Finds field direction | Thumb → Current, Fingers → Field |
| Straight Wire | Circular field lines | B = μ₀I/(2πr) |
| Circular Loop | Creates mini bar magnet | B = μ₀I/(2R) at center |
| Solenoid | Uniform field inside coil | B = μ₀nI |
| Toroid | Field contained in donut | B = μ₀NI/(2πr) |
| Ampere’s Law | Shortcut for symmetric cases | ∮B·dl = μ₀I_enclosed |
🌟 The Amazing Truth
You’ve just learned one of nature’s greatest secrets: Moving charges create magnetic fields. This principle powers:
- 🚂 Electric trains
- 🏥 MRI machines
- 📱 Speakers in your phone
- 🔌 Every electric motor ever made
From Oersted’s surprise discovery to the mathematical beauty of Ampere’s Law, this is physics at its finest—simple rules creating endless possibilities!
Now you understand the invisible force that shapes our electric world! ⚡🧲
