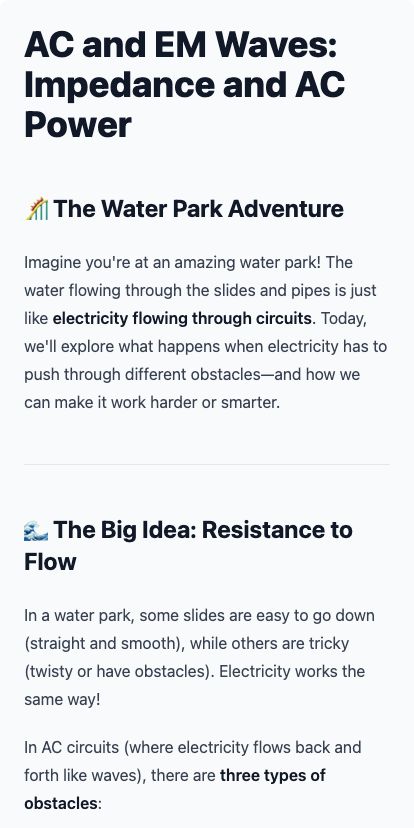

AC and EM Waves: Impedance and AC Power

🎢 The Water Park Adventure

Imagine you’re at an amazing water park! The water flowing through the slides and pipes is just like electricity flowing through circuits. Today, we’ll explore what happens when electricity has to push through different obstacles—and how we can make it work harder or smarter.


🌊 The Big Idea: Resistance to Flow

In a water park, some slides are easy to go down (straight and smooth), while others are tricky (twisty or have obstacles). Electricity works the same way!

In AC circuits (where electricity flows back and forth like waves), there are three types of obstacles:

  1. Regular resistance (like friction)
  2. Inductive reactance (coils that fight change)
  3. Capacitive reactance (storage tanks that resist filling)

Let’s meet each one!


🧲 Inductive Reactance: The Stubborn Coil

What Is It?

Think of a lazy river ride at a water park. The water doesn’t want to start moving, and once it’s moving, it doesn’t want to stop. That’s exactly how an inductor (a coiled wire) behaves with electricity!

An inductor resists changes in current flow. When AC tries to push through, the coil says, “Wait, wait! Not so fast!”

The Formula

X_L = 2πfL

Where:

  • X_L = Inductive reactance (measured in Ohms, Ω)
  • f = Frequency (how fast AC oscillates)
  • L = Inductance (size of the coil, in Henrys)

Simple Example

If you have a coil with L = 0.1 H and AC frequency f = 50 Hz:

X_L = 2 × 3.14 × 50 × 0.1 = 31.4 Ω

The coil acts like a 31.4 Ω “brake” on the current!

Key Insight

Higher frequency = More resistance from the coil!

Fast-changing electricity faces more pushback from inductors.


🔋 Capacitive Reactance: The Water Tank

What Is It?

Imagine a giant water tank in your water park. When you first start filling it, water rushes in easily. But as it fills up, it becomes harder to push more water in!

A capacitor stores electrical charge like a tank stores water. At first, current flows easily. As it charges up, it resists more.

The Formula

X_C = 1 / (2πfC)

Where:

  • X_C = Capacitive reactance (in Ohms, Ω)
  • f = Frequency
  • C = Capacitance (tank size, in Farads)

Simple Example

If you have C = 100 μF (0.0001 F) and f = 50 Hz:

X_C = 1 / (2 × 3.14 × 50 × 0.0001) = 31.8 Ω

Key Insight

Higher frequency = LESS resistance from capacitors!

Fast-changing electricity can easily “splash” in and out of capacitors without filling them up.


🎯 Impedance: The Total Obstacle Course

What Is It?

Now imagine combining all the obstacles in your water park into one giant course. You’ve got:

  • Friction from the slides ®
  • The lazy river’s resistance (X_L)
  • The water tank’s pushback (X_C)

Impedance (Z) is the TOTAL resistance an AC circuit has—combining everything!

The Magic Triangle

graph TD A["Impedance Z"] --> B["Resistance R"] A --> C["Reactance X"] C --> D["X_L - X_C"]

The Formula

Z = √(R² + (X_L - X_C)²)

It’s like finding the length of a slide using the Pythagorean theorem!

Simple Example

If R = 30 Ω, X_L = 50 Ω, and X_C = 10 Ω:

Net reactance = 50 - 10 = 40 Ω

Z = √(30² + 40²) = √(900 + 1600) = √2500 = 50 Ω

The total obstacle is 50 Ω!


📊 Phasor Diagrams: The Dance of Voltage and Current

What Is It?

In AC circuits, voltage and current don’t always move together. Sometimes one leads, sometimes one follows—like dance partners!

A phasor diagram is a picture showing this dance. It uses arrows (vectors) spinning in circles.

The Three Relationships

graph TD A["Pure Resistor"] --> B["V and I in sync<br/>Phase = 0°"] C["Pure Inductor"] --> D["V leads I by 90°<br/>I is lazy"] E["Pure Capacitor"] --> F["I leads V by 90°<br/>Capacitor eager to charge"]

Memory Trick: ELI the ICE man

  • ELI: In an inductor (L), E (voltage) leads I (current)
  • ICE: In a capacitor ©, I leads E

Simple Example

In an RL circuit, if voltage is at 0° and the current lags by 30°, you draw:

  • Voltage arrow pointing right (0°)
  • Current arrow pointing 30° below horizontal

The angle between them is the phase angle (φ).


⚡ AC Power: The Real Work

What Is It?

Imagine you’re pushing a friend on a swing. You get the best results when you push at exactly the right moment! If you push at the wrong time, you waste energy.

AC power works the same way. Only part of the power does real work.

Three Types of Power

graph TD A["AC Power Types"] --> B["Apparent Power S<br/>Total Push<br/>Unit: VA"] A --> C["Real Power P<br/>Useful Work<br/>Unit: Watts"] A --> D["Reactive Power Q<br/>Stored & Released<br/>Unit: VAR"]

The Power Triangle

S² = P² + Q²

Or think of it as:

  • S = V × I (what you measure)
  • P = V × I × cos(φ) (what you actually use)
  • Q = V × I × sin(φ) (what bounces back and forth)

Simple Example

If V = 220V, I = 5A, and φ = 60°:

  • S = 220 × 5 = 1100 VA
  • P = 1100 × cos(60°) = 1100 × 0.5 = 550 W
  • Q = 1100 × sin(60°) = 1100 × 0.866 = 953 VAR

Only 550W does real work!


📈 Power Factor: Efficiency Rating

What Is It?

Power factor is like a report card for your circuit. It tells you how efficiently you’re using electricity.

Power Factor = cos(φ) = P / S = Real Power / Apparent Power

The Scale

Power Factor Rating Meaning
1.0 Perfect! All power does work
0.8 Good 80% is useful
0.5 Poor Half is wasted
0 Terrible Nothing does work!

Why It Matters

Electric companies charge extra for low power factor! It’s like ordering a pizza but only eating half—wasteful!

Simple Example

A factory has:

  • Apparent power: 1000 VA
  • Real power: 800 W

Power factor = 800/1000 = 0.8

They’re using 80% of their electricity efficiently.


👻 Wattless Current: The Ghost Current

What Is It?

Imagine you’re on a swing, going back and forth. You’re moving, but you’re not actually going anywhere! That’s wattless current.

In reactive circuits (with inductors or capacitors), some current flows back and forth without doing any real work. It’s like running on a treadmill—lots of motion, zero distance traveled!

The Formula

I_wattless = I × sin(φ)

Where I is total current and φ is phase angle.

Why “Wattless”?

It produces zero watts of real power! The energy just bounces between the source and reactive components.

Simple Example

If total current I = 10 A and phase angle φ = 30°:

I_wattless = 10 × sin(30°) = 10 × 0.5 = 5 A

Half the current does no work!


🎸 Choke Coil: The Current Controller

What Is It?

A choke coil is a special inductor used to control or limit AC current without wasting much energy as heat.

Think of it like a speed bump for electricity—it slows things down but doesn’t create much friction (heat).

How It Works

graph TD A["AC Current"] --> B["Choke Coil"] B --> C["Limits Current<br/>using X_L"] B --> D["Very Low Heat<br/>because R is tiny"] C --> E["Safe Device Operation"]

Why Not Use a Resistor?

A resistor would also limit current, BUT it would waste energy as heat!

Method Current Limited Heat Produced
Resistor Yes Lots! (Wasted)
Choke Coil Yes Very little

Real-Life Uses

  1. Fluorescent light tubes - Choke limits current to the tube
  2. LED drivers - Controls current to LEDs
  3. Power supplies - Filters out unwanted frequencies

Simple Example

A choke coil with:

  • Inductance L = 1 H
  • Resistance R = 5 Ω
  • At f = 50 Hz

X_L = 2π × 50 × 1 = 314 Ω

The coil provides 314 Ω of current-limiting without much heat, because the small 5 Ω resistance barely matters!


🎯 Summary: Your Power Toolkit

Concept What It Is Key Formula
Inductive Reactance Coil’s resistance to AC X_L = 2πfL
Capacitive Reactance Capacitor’s resistance to AC X_C = 1/(2πfC)
Impedance Total circuit resistance Z = √(R² + (X_L-X_C)²)
Phasor Diagram Shows V-I relationship ELI the ICE man
AC Power Real, Reactive, Apparent P = VI cos(φ)
Power Factor Efficiency measure cos(φ) = P/S
Wattless Current Does no real work I × sin(φ)
Choke Coil Limits current, low heat Uses X_L >> R

🌟 You Did It!

You now understand how AC circuits handle different types of obstacles, why some power does real work while other power just bounces around, and how clever devices like choke coils help control electricity without wasting energy.

Remember: In the world of AC power, timing is everything—voltage and current need to dance together for maximum efficiency!

Keep exploring, keep questioning, and you’ll master the invisible forces that power our world! ⚡
