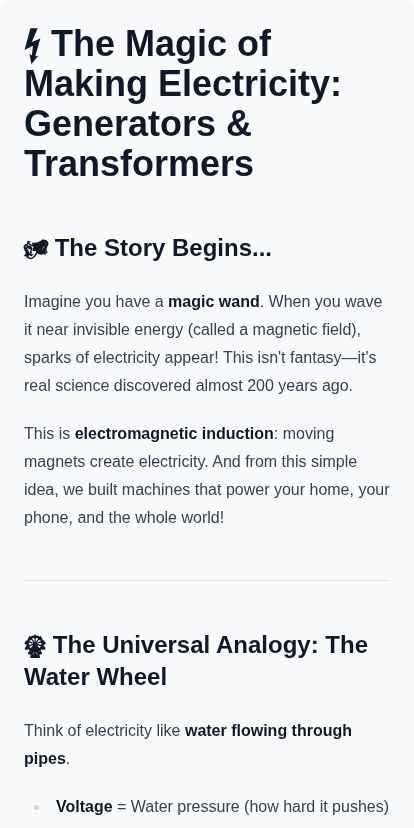

⚡ The Magic of Making Electricity: Generators & Transformers
🎭 The Story Begins…
Imagine you have a magic wand. When you wave it near invisible energy (called a magnetic field), sparks of electricity appear! This isn’t fantasy—it’s real science discovered almost 200 years ago.
This is electromagnetic induction: moving magnets create electricity. And from this simple idea, we built machines that power your home, your phone, and the whole world!
🎡 The Universal Analogy: The Water Wheel
Think of electricity like water flowing through pipes.
- Voltage = Water pressure (how hard it pushes)
- Current = How much water flows
- Generator = A pump that creates water pressure
- Transformer = A machine that changes water pressure (high to low, or low to high)
Keep this picture in your mind. Everything we learn connects back to it!
🔄 AC Generator: The Electricity Factory
What is it?
An AC generator is like a bicycle wheel with magnets. When you spin the wheel, it creates electricity that switches direction back and forth—like a swing going forward and backward.
How does it work?
graph TD A["🧲 Magnets create invisible field"] --> B["🔄 Coil of wire spins inside"] B --> C["⚡ Electricity is born!"] C --> D["↔️ Current alternates direction"]
The Secret Recipe:
- Put a coil of wire between two magnets
- Spin the coil (using water, wind, or steam)
- As the coil turns, it cuts through magnetic lines
- This “cutting” creates electricity!
Why does current alternate?
As the coil rotates:
- Half turn: Current flows one way →
- Next half turn: Current flows the other way ←
This back-and-forth is called Alternating Current (AC).
Real Example 🏭
The power plant near your city uses giant AC generators. Steam from burning coal or nuclear reactions spins huge coils—making the electricity that lights your home!
⚙️ DC Generator: One-Way Street
What is it?
A DC generator is the AC generator’s cousin. But instead of letting electricity switch directions, it uses a clever trick to make current flow only one way—like a one-way street.
The Magic Part: Commutator
The commutator is a special rotating switch. Every time the current tries to reverse, the commutator flips the connection, keeping current flowing in the same direction.
graph TD A["🔄 Coil spins in magnetic field"] --> B["⚡ AC is generated"] B --> C["🔀 Commutator flips connections"] C --> D["➡️ DC comes out - one direction only!"]
Real Example 🔋
Old car generators (before alternators) used DC generators to charge the battery. Batteries need one-way current—they can’t handle the back-and-forth of AC!
🚗 DC Motor Principle: Electricity Makes Things Spin!
The Reverse Magic
Here’s something amazing: A generator run backward becomes a motor!
- Generator: Spin → Electricity
- Motor: Electricity → Spin
How DC Motors Work
- Send electricity through a wire coil
- The coil sits between magnets
- Magnetic forces push and pull the coil
- The coil spins!
graph TD A["🔌 DC electricity flows in"] --> B["🧲 Coil becomes electromagnet"] B --> C["⚔️ Magnets push against each other"] C --> D["🔄 Coil spins continuously"]
Why Does It Keep Spinning?
The commutator switches the current direction at just the right moment. This keeps the magnetic push-pull going around and around—forever (or until you turn it off)!
Real Example 🧸
The motor in your toy car is a DC motor. Battery sends DC current → motor spins → wheels turn → zoom zoom!
🌀 AC Motor Principle: The Spinning Magnetic Field
A Different Approach
AC motors don’t need commutators. Instead, they use a clever trick: a rotating magnetic field.
How It Works
Imagine three magnets arranged in a circle, taking turns getting stronger. It’s like a magnetic “wave” spinning around. A metal rotor in the middle gets dragged along by this spinning field!
graph TD A["⚡ AC power creates"] --> B["🧲 Rotating magnetic field"] B --> C["🔄 Field pulls rotor along"] C --> D["🎯 Motor shaft spins!"]
Two Main Types
| Type | How It Starts | Used In |
|---|---|---|
| Induction Motor | Rotor chases the field | Fans, pumps, ACs |
| Synchronous Motor | Rotor locks to field speed | Clocks, precise machines |
Real Example ❄️
Your refrigerator, washing machine, and air conditioner all use AC induction motors. They’re reliable, quiet, and last for years!
🔄 Transformers: The Voltage Changers
The Problem
Power plants make electricity at thousands of volts. Your phone charger needs only 5 volts. How do we safely change voltage?
Enter the Transformer!
A transformer is two coils of wire wrapped around an iron core. They don’t touch, but they share magnetic energy.
graph TD A["⚡ AC enters primary coil"] --> B["🧲 Creates changing magnetic field"] B --> C["🔗 Field passes through iron core"] C --> D["⚡ Induces voltage in secondary coil"]
The Magic Ratio
More turns = More voltage
| Primary Coil | Secondary Coil | Result |
|---|---|---|
| 100 turns | 10 turns | Voltage ÷ 10 (Step-down) |
| 100 turns | 1000 turns | Voltage × 10 (Step-up) |
The Formula (Simple!)
$\frac{V_{primary}}{V_{secondary}} = \frac{N_{primary}}{N_{secondary}}$
Or in plain words:
Voltage ratio = Turns ratio
Real Example 🔌
Your phone charger is a step-down transformer. It takes 120V (or 240V) from the wall and steps it down to a safe 5V for your phone!
📊 Transformer Efficiency: Energy Isn’t Free
What’s Efficiency?
Efficiency tells us how much energy we actually use versus how much we waste.
$\text{Efficiency} = \frac{\text{Power Out}}{\text{Power In}} \times 100%$
Where Does Energy Go?
Even great transformers waste some energy:
| Loss Type | What Happens | Fix |
|---|---|---|
| Copper losses | Wires heat up | Use thicker wires |
| Iron losses | Core heats up | Use special steel |
| Eddy currents | Swirling currents in core | Use layered (laminated) core |
How Good Are Real Transformers?
- Small chargers: ~80-85% efficient
- Power grid transformers: ~95-99% efficient!
Real Example 💡
A 100W transformer at 95% efficiency:
- Input: 100W
- Output: 95W (useful)
- Lost as heat: 5W
⚡ Power Transmission: Sending Electricity Far Away
The Big Challenge
Power plants are often far from cities. Sending electricity through wires wastes energy as heat. How do we minimize this waste?
The Secret: HIGH VOLTAGE!
Here’s the physics trick:
$\text{Power Loss} = I^2 \times R$
- I = Current
- R = Resistance of wires
To send the same power with less loss, we reduce current. But if we reduce current, we must increase voltage (since Power = Voltage × Current).
The Journey of Electricity
graph TD A["🏭 Power Plant: 11,000V"] --> B["📈 Step-Up Transformer"] B --> C["⚡ Transmission: 400,000V"] C --> D["📉 Step-Down Transformer"] D --> E["🏘️ Substation: 11,000V"] E --> F["📉 Another Step-Down"] F --> G["🏠 Your Home: 120V or 240V"]
Why Not Just Use High Voltage Everywhere?
High voltage is dangerous! It can jump through air and electrocute people. We only use it in tall towers far from the ground. Near homes, we step it down to safe levels.
Real Example 🌍
Electricity travels from Hoover Dam to Los Angeles (over 400 km!) at 500,000 volts. Step-down transformers reduce it safely before it reaches your toaster.
🎯 Quick Recap: The Power Family
| Device | Input | Output | Key Part |
|---|---|---|---|
| AC Generator | Spinning motion | AC electricity | Slip rings |
| DC Generator | Spinning motion | DC electricity | Commutator |
| DC Motor | DC electricity | Spinning motion | Commutator |
| AC Motor | AC electricity | Spinning motion | Rotating field |
| Transformer | AC at one voltage | AC at different voltage | Iron core + coils |
🌟 Why This Matters
Every time you:
- Turn on a light 💡
- Charge your phone 📱
- Ride an electric car 🚗
- Watch a wind turbine spin 🌬️
…you’re using the magic of electromagnetic induction!
Generators create the electricity. Transformers change its voltage. Motors turn it back into motion. It’s a beautiful cycle of energy transformation—and now YOU understand how it all works!
🧠 Remember This
“Spin near magnets, electricity flows. Flow through magnets, things start to spin. Coils change voltage. High voltage travels far.”
That’s the entire chapter in four sentences. You’ve got this! ⚡
