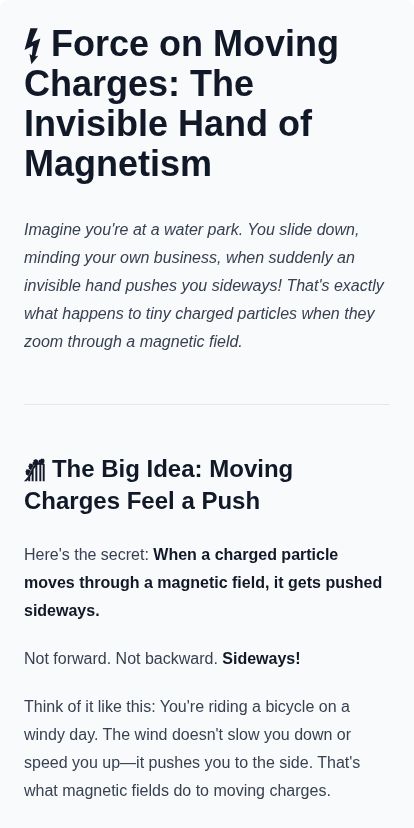

⚡ Force on Moving Charges: The Invisible Hand of Magnetism
Imagine you’re at a water park. You slide down, minding your own business, when suddenly an invisible hand pushes you sideways! That’s exactly what happens to tiny charged particles when they zoom through a magnetic field.
🎢 The Big Idea: Moving Charges Feel a Push
Here’s the secret: When a charged particle moves through a magnetic field, it gets pushed sideways.
Not forward. Not backward. Sideways!
Think of it like this: You’re riding a bicycle on a windy day. The wind doesn’t slow you down or speed you up—it pushes you to the side. That’s what magnetic fields do to moving charges.
Key Point:
- Charge sitting still? No push.
- Charge moving? Gets pushed sideways!
🎯 The Lorentz Force: The Complete Picture
The Lorentz Force is the total push a charged particle feels from both electric AND magnetic fields.
The Magic Formula
F = qE + qv × B
In simple words:
- qE = Push from electric field (like a fan blowing you)
- qv × B = Push from magnetic field (the sideways shove)
🍕 Pizza Delivery Analogy
Imagine you’re delivering pizza on your scooter:
- The electric field is like a slope—it pushes you downhill or uphill
- The magnetic field is like a strong crosswind—it pushes you sideways!
The Lorentz Force combines both: slope + crosswind = your total experience!
Just the Magnetic Part
When there’s no electric field, we get:
F = qvB sin(θ)
Where:
- q = how much charge you carry
- v = how fast you’re going
- B = how strong the magnetic field is
- θ = angle between your path and the field
Maximum push: When you move perpendicular (90°) to the field Zero push: When you move parallel to the field
🌀 Charge Motion in a Magnetic Field: Going in Circles!
Here’s something wild: The magnetic force NEVER speeds up or slows down a charge. It only changes direction!
Why? Because the push is always sideways. It’s like when you swing a ball on a string—the string pulls sideways, keeping the ball going in circles but never making it faster or slower.
The Result: Circular Motion!
When a charge moves through a uniform magnetic field (at 90° to it):
- It goes in a perfect circle
- Speed stays the same
- Direction keeps changing
Circle Size Formula
r = mv/(qB)
Bigger circle when:
- Heavier particle (more m)
- Faster particle (more v)
Smaller circle when:
- More charge (more q)
- Stronger magnetic field (more B)
🎡 Ferris Wheel Example
Imagine electrons as kids on a Ferris wheel:
- The magnetic field is like the wheel’s structure
- It keeps bending their path
- They go round and round!
🔩 Helical Motion: The Spiral Dance
What if the charge isn’t moving exactly perpendicular to the magnetic field? What if it’s moving at an angle?
Answer: It spirals like a corkscrew!
How It Works
When a charge moves at an angle to the magnetic field:
- The perpendicular part of velocity makes it circle
- The parallel part of velocity makes it drift forward
Combine them: You get a beautiful helix (spring/corkscrew shape)!
🌀 Visualize It
graph TD A["Charge enters at angle"] --> B["Velocity has 2 parts"] B --> C["Perpendicular: Makes circles"] B --> D["Parallel: Moves forward"] C --> E["Circle + Forward = HELIX!"] D --> E
Real Example: Aurora Borealis!
The beautiful Northern Lights happen because charged particles from the Sun spiral along Earth’s magnetic field lines and crash into the atmosphere!
⚖️ Velocity Selector: The Speed Filter
Imagine a door that only opens for people walking at exactly the right speed. Too fast? Bounced away! Too slow? Bounced away! Just right? Welcome in!
That’s a velocity selector!
How It Works
A velocity selector uses BOTH electric and magnetic fields:
- Electric field pushes charge one way (let’s say UP)
- Magnetic field pushes charge the other way (DOWN)
The magic happens when these pushes balance:
qE = qvB
v = E/B
Only particles moving at speed v = E/B go straight through!
🚪 Bouncer at a Club
Think of it like a bouncer at a club:
- Electric field is pushing everyone left
- Magnetic field is pushing everyone right
- Only people walking at the perfect speed feel equal pushes and walk straight in!
🌪️ The Cyclotron: Particle Accelerator for Beginners
A cyclotron is a machine that speeds up particles by making them go in circles while giving them energy boosts!
How It Works
graph TD A["Particle enters center"] --> B["Magnetic field makes it curve"] B --> C["Crosses gap: Gets energy boost!"] C --> D["Now faster = bigger circle"] D --> E["Crosses gap again: Another boost!"] E --> F["Repeat until super fast"] F --> G["Exit at high speed!"]
The Beautiful Trick
- Particle spirals in magnetic field
- Each time it crosses the center gap, electric field gives it a push
- Faster particle = bigger circle
- It spirals outward, getting faster and faster!
🍩 Donut Machine Analogy
Imagine a machine where a ball rolls in circles on a donut-shaped track:
- Every time it passes a certain point, someone gives it a push
- It rolls faster and moves to a bigger circle
- Eventually, it’s going super fast on the outer edge!
The Cyclotron Frequency
Here’s the amazing part: No matter how fast the particle goes, it takes the SAME time to complete each half-circle!
f = qB/(2πm)
This frequency doesn’t depend on speed! That’s why cyclotrons work—the electric field can switch at a constant rhythm.
🔬 Mass Spectrometer: Weighing the Invisible
How do scientists “weigh” atoms and molecules? They can’t put them on a scale! Instead, they use a mass spectrometer.
The Clever Trick
- Ionize: Give particles a charge
- Accelerate: Speed them up with electric field
- Bend: Send them through magnetic field
- Measure: See how much they curve
The key insight: Heavier particles curve less, lighter particles curve more!
r = mv/(qB)
🏃 Running Race Analogy
Imagine a race where everyone runs on a curved track:
- Light runners can turn quickly (small curve)
- Heavy runners turn slowly (big curve)
- By seeing WHERE each runner ends up, you know their weight!
Real Applications
- Finding unknown compounds in chemistry
- Detecting drugs in blood tests
- Analyzing ancient artifacts
- Discovering new elements!
⚡ The Hall Effect: Magnetism’s Fingerprint
When current flows through a thin conductor in a magnetic field, something surprising happens: voltage appears across the conductor!
This is the Hall Effect, and it’s like magnetism leaving its fingerprint.
How It Works
- Current flows through a thin strip (electrons moving left to right)
- Magnetic field points into the page
- Electrons get pushed to one edge (Lorentz force!)
- This creates a voltage difference (Hall Voltage)
🚗 Traffic Jam Analogy
Imagine a highway with cars (electrons):
- Normally, cars spread evenly across lanes
- A strong wind (magnetic field) pushes all cars to one side
- That side gets crowded, other side gets empty
- This “imbalance” is like the Hall voltage!
Hall Voltage Formula
V_H = IB/(nqt)
Where:
- I = current
- B = magnetic field strength
- n = number of charge carriers per volume
- q = charge
- t = thickness of conductor
Why It’s Amazing
The Hall Effect tells us:
- Type of charge carriers: Electrons or holes (positive carriers)
- How many charge carriers: Carrier density
- Magnetic field strength: Used in sensors!
Real Uses
- Measure magnetic field strength
- Speed sensors in car wheels
- Position sensors in joysticks
- Current sensors
🧭 Quick Summary Table
| Concept | What It Does | Real Example |
|---|---|---|
| Lorentz Force | Total force on moving charge | Particle in fields |
| Circular Motion | Charge goes in circles | Electrons in magnets |
| Helical Motion | Charge spirals forward | Aurora Borealis |
| Velocity Selector | Filters by speed | Mass spectrometer input |
| Cyclotron | Accelerates particles | Medical isotopes |
| Mass Spectrometer | Weighs tiny particles | Drug testing |
| Hall Effect | Creates sideways voltage | Speed sensors |
🌟 The Big Picture
All these phenomena come from ONE simple rule:
Moving charges feel a sideways push in magnetic fields!
From that one rule, we get:
- Circular paths (perpendicular motion)
- Spiral paths (angled motion)
- Speed filters (balanced fields)
- Particle accelerators (repeated pushes)
- Particle weighing (measuring curves)
- Voltage sensors (charge separation)
The invisible hand of magnetism is everywhere—bending paths, sorting particles, and powering technology from MRI machines to smartphone sensors!
💡 Remember This
“A moving charge in a magnetic field is like a dancer being guided by an invisible partner—always pushed sideways, never forward or backward, creating beautiful circular and spiral patterns!”
Now YOU understand one of nature’s most elegant forces! 🎉
