Ferromagnetism and Hysteresis

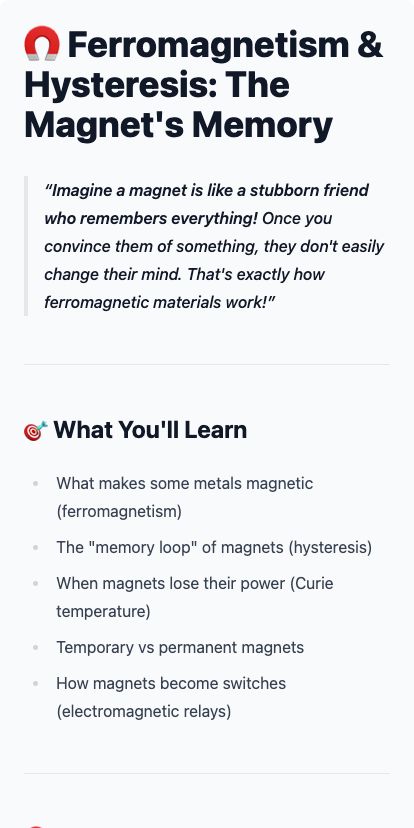

🧲 Ferromagnetism & Hysteresis: The Magnet’s Memory

Imagine a magnet is like a stubborn friend who remembers everything! Once you convince them of something, they don’t easily change their mind. That’s exactly how ferromagnetic materials work!

🎯 What You’ll Learn

• What makes some metals magnetic (ferromagnetism)
• The “memory loop” of magnets (hysteresis)
• When magnets lose their power (Curie temperature)
• Temporary vs permanent magnets
• How magnets become switches (electromagnetic relays)

🧲 Meet Ferromagnetism: The Super Magnets

What is it?

Ferromagnetism is when certain materials (like iron, nickel, and cobalt) become STRONG magnets when you put them near another magnet.

Think of it like this:

🎭 The Crowd Analogy

Imagine a crowd of people standing randomly in a room. Each person is like a tiny invisible magnet called a domain.

• Before magnetization: Everyone faces different directions → No teamwork → Weak
• After magnetization: A leader shouts “FACE NORTH!” → Everyone turns the same way → STRONG!

Simple Example

Your refrigerator magnet:

• Made of ferromagnetic material
• All the tiny domains inside point the same direction
• That’s why it sticks to your fridge!

graph TD
    A["Random Domains"] -->|Apply Magnetic Field| B["Aligned Domains"]
    B --> C["STRONG MAGNET!"]
    A --> D["Weak/No Magnetism"]

🔄 The Hysteresis Loop: A Magnet’s Memory

What is Hysteresis?

Hysteresis means “lagging behind.” It’s like when you push a swing—it doesn’t come back to exactly where it started!

🎢 The Stubborn Swing Analogy

Push a swing forward → It swings forward Let go → It doesn’t stop in the middle! It keeps swinging back and forth before settling.

Magnets do the same thing with magnetism!

The Hysteresis Loop Explained

When you magnetize and demagnetize a material, it follows a loop pattern:

graph TD
    A["Start: No Magnetism"] -->|Add Field ➕| B["Getting Magnetized"]
    B -->|Maximum| C["Fully Magnetized ⬆️"]
    C -->|Remove Field| D["Still Magnetized! 🧲"]
    D -->|Reverse Field ➖| E["Demagnetizing..."]
    E -->|Maximum Reverse| F["Magnetized Opposite ⬇️"]
    F -->|Remove Field| G["Still Opposite!"]
    G -->|Add Field ➕| B

Key Points on the Loop

Simple Example

Hard drive storage:

• Data is stored using tiny magnetized spots
• The hysteresis “memory” keeps data safe when power is off
• Each spot remembers if it’s a 0 or 1!

🔥 Curie Temperature: When Magnets Give Up

What is Curie Temperature?

Every ferromagnetic material has a breaking point—a temperature where it loses its magnetic powers forever (until cooled down).

🍦 The Ice Cream Analogy

Ice cream stays solid in the freezer. Take it out on a hot day → It melts! The “melting point” for magnetism is called Curie Temperature.

Why Does This Happen?

• Cold: Tiny domains stay aligned → Strong magnet
• Hot: Atoms shake too much → Domains get scrambled → No magnetism!

Curie Temperatures for Common Materials

Simple Example

Kitchen experiment:

• Heat a small magnet with a candle
• Watch it drop the paperclip it was holding!
• Once cooled, it can be re-magnetized

graph TD
    A["Strong Magnet 🧲"] -->|Heat Up 🔥| B["Domains Scramble"]
    B -->|Above Curie Temp| C["No Magnetism! ❌"]
    C -->|Cool Down ❄️| D["Can Be Magnetized Again"]

⚡ Electromagnets vs Permanent Magnets

The Big Difference

🎮 The Light Bulb Analogy

• Permanent magnet = Glow-in-the-dark sticker (always glowing)
• Electromagnet = Light bulb (only works when plugged in!)

How Electromagnets Work

1. Wrap wire around an iron core
2. Pass electricity through the wire
3. Iron becomes a MAGNET!
4. Turn off electricity → Magnetism stops

graph TD
    A["Iron Core"] -->|Wrap with Wire| B["Coil Created"]
    B -->|Add Electricity ⚡| C["ELECTROMAGNET ON!"]
    C -->|Remove Electricity| D["Magnetism OFF"]

Simple Examples

Electromagnets in action:

• 🏗️ Junkyard crane: Picks up cars, drops them on command
• 🔔 Doorbell: Electromagnet pulls a hammer to ring the bell
• 🔊 Speakers: Electromagnet vibrates to make sound

Permanent magnets in action:

• 🧭 Compass: Always points north
• 🚪 Cabinet doors: Hold doors shut
• 💳 Credit card strip: Stores your card info

🔌 Electromagnetic Relay: The Magnetic Switch

What is a Relay?

A relay is like a light switch controlled by another light switch—but using magnetism!

🤖 The Robot Butler Analogy

Imagine you’re too weak to open a heavy door. You press a small button → Robot butler hears it → Robot opens the heavy door!

• Small button = Small control current
• Robot butler = Relay
• Heavy door = Big electrical load

How It Works

graph TD
    A["Small Control Current"] -->|Flows through coil| B["Electromagnet Activates"]
    B -->|Magnetic Force| C["Metal Arm Pulls"]
    C -->|Contact Closes| D["Big Circuit Turns ON!"]
    A -->|Current Stops| E["Electromagnet Off"]
    E -->|Spring Returns Arm| F["Big Circuit OFF"]

Parts of a Relay

1. Coil: Wire wrapped around iron (becomes electromagnet)
2. Armature: Metal arm that moves
3. Contacts: The “switch” that opens/closes
4. Spring: Pulls armature back when coil is off

Why Use Relays?

Simple Examples

Relays everywhere:

• 🚗 Car starter: Small key switch activates huge starter motor
• 🏠 Thermostat: Tiny temperature sensor controls big heater
• 🏭 Factories: Computers safely control heavy machinery

🎓 Quick Summary

graph TD
    A["Ferromagnetism"] --> B["Materials with Strong Magnetic Properties"]
    B --> C["Hysteresis Loop"]
    C --> D["Magnets Have Memory!"]
    B --> E["Curie Temperature"]
    E --> F["Heat Kills Magnetism"]
    B --> G["Two Types"]
    G --> H["Electromagnet: Needs Power"]
    G --> I["Permanent: Always On"]
    H --> J["Relay: Magnetic Switch"]

Remember This! 🧠

🌟 You Did It!

Now you understand how magnets “remember,” why they hate heat, and how we use them as switches. From your refrigerator to giant cranes, ferromagnetism is everywhere!

💡 Fun Fact: The Earth itself is a giant electromagnet! That’s why compasses work—they’re pointing to Earth’s magnetic field!
