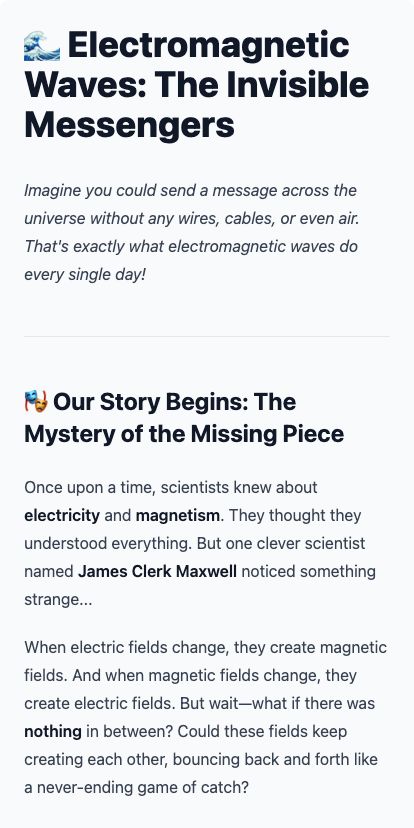

🌊 Electromagnetic Waves: The Invisible Messengers

Imagine you could send a message across the universe without any wires, cables, or even air. That’s exactly what electromagnetic waves do every single day!

🎭 Our Story Begins: The Mystery of the Missing Piece

Once upon a time, scientists knew about electricity and magnetism. They thought they understood everything. But one clever scientist named James Clerk Maxwell noticed something strange…

When electric fields change, they create magnetic fields. And when magnetic fields change, they create electric fields. But wait—what if there was nothing in between? Could these fields keep creating each other, bouncing back and forth like a never-ending game of catch?

The answer changed everything.

🔄 Displacement Current: The Hidden Player

What’s the Problem?

Imagine water flowing through a pipe. Normally, you can measure how much water passes any point. But what happens when there’s a gap in the pipe?

Maxwell found a similar gap in our understanding of electricity.

The Discovery

Regular current = electrons actually moving through a wire.

Displacement current = when electric field changes in empty space, it acts like a current—even with no electrons!

Think of it like this:
━━━━━━━━━━━━━━━━━━━━
🔌 Wire ──→ Gap ──→ 🔌 Wire
           ⚡
    (changing electric field)
    (acts like invisible current!)

Simple Example

When you charge a phone:

• Current flows in the wire
• Between the capacitor plates = no wire!
• But the changing electric field = displacement current
• The circuit “completes” through empty space!

Key Formula:

Displacement Current = ε₀ × (rate of change of electric flux)

📜 Maxwell’s Equations: The Four Magic Rules

Maxwell combined everything into four beautiful equations. Think of them as the “recipe book” for all electromagnetic behavior.

graph TD
    A[⚡ Maxwell's 4 Equations] --> B["1️⃣ Electric charges create electric fields"]
    A --> C["2️⃣ No magnetic monopoles exist"]
    A --> D["3️⃣ Changing magnetic fields create electric fields"]
    A --> E["4️⃣ Electric currents AND changing electric fields create magnetic fields"]
    E --> F["🌟 This includes displacement current!"]

The Four Rules Simply Explained:

The Big Prediction: Maxwell calculated that these self-sustaining waves would travel at exactly the speed of light. Light itself must be an electromagnetic wave!

🌊 Electromagnetic Waves: Fields Dancing Together

How They’re Born

Picture throwing a pebble in a pond. Ripples spread out. Now imagine two different types of ripples—one horizontal, one vertical—perfectly synchronized, pushing each other forward.

That’s an EM wave!

Direction of travel ──────────────────→

Electric Field (E):    ↑    ↑    ↑
                      ╱    ╱    ╱
                     ╱    ╱    ╱
                    ━━━━━━━━━━━━━━━→

Magnetic Field (B):  ⊙────⊙────⊙
(pointing out of page)

E and B are PERPENDICULAR to each other
AND perpendicular to the direction of travel!

Key Characteristics

✅ No medium needed — Travel through empty space! ✅ Self-sustaining — E creates B, B creates E, forever ✅ Transverse waves — Fields vibrate sideways to motion ✅ Same speed in vacuum — All EM waves travel at c

🎯 EM Wave Properties: What Makes Them Special

The Three Musketeers: Wavelength, Frequency, Speed

graph TD
    A["EM Wave Properties"] --> B["Wavelength λ"]
    A --> C["Frequency f"]
    A --> D["Speed c"]
    B --> E["Distance between peaks"]
    C --> F["Vibrations per second"]
    D --> G["Always 3×10⁸ m/s in vacuum"]
    B --> H["c = λ × f"]
    C --> H

The Golden Rule

Speed = Wavelength × Frequency
   c   =    λ      ×     f

3×10⁸ m/s = λ × f

Simple Example:

• Radio waves: Long wavelength (meters) → Low frequency
• X-rays: Tiny wavelength (nanometers) → Super high frequency
• Both travel at the SAME speed!

More Properties

🚀 Speed of EM Waves: The Universal Speed Limit

The Magic Number

In empty space (vacuum):

c = 3 × 10⁸ m/s = 300,000 km/s

Perspective:

• Light circles Earth 7.5 times per second
• Reaches the Moon in 1.3 seconds
• From Sun to Earth in 8 minutes

Where Does This Speed Come From?

Maxwell’s equations give us:

c = 1 / √(ε₀ × μ₀)

Where:
ε₀ = electric constant (permittivity of space)
μ₀ = magnetic constant (permeability of space)

The speed is built into the fabric of space itself!

In Different Materials

• In glass: ~200,000 km/s (slower!)
• In water: ~225,000 km/s
• In diamond: ~124,000 km/s

Why? Materials resist the changing fields, slowing the wave.

🌈 Electromagnetic Spectrum: The Rainbow of Invisible Light

All EM waves are the same thing—just different wavelengths! Visible light is just a tiny slice.

graph LR
    A["EM Spectrum"] --> B["📻 Radio Waves"]
    A --> C["📡 Microwaves"]
    A --> D["🔥 Infrared"]
    A --> E["🌈 Visible Light"]
    A --> F["☀️ Ultraviolet"]
    A --> G["🏥 X-rays"]
    A --> H["☢️ Gamma Rays"]
    B --> I["Longest wavelength, lowest energy"]
    H --> J["Shortest wavelength, highest energy"]

The Full Family

Simple Memory Trick

Randy Monkeys Invade Venice Using X-tra Guns

(Radio, Microwave, Infrared, Visible, Ultraviolet, X-ray, Gamma)

🔧 EM Wave Applications: Changing Our World

Radio Waves (Longest)

📻 AM/FM Radio — Music on the go 📶 Cell Phones — Instant communication 🛰️ Satellites — GPS navigation

Microwaves

🍿 Microwave Ovens — Heat food by vibrating water molecules 📡 WiFi & Bluetooth — Wireless internet 🌍 Radar — Weather tracking, air traffic control

Infrared

🎮 TV Remotes — Control devices 📷 Night Vision — See in darkness 🌡️ Thermal Cameras — Find heat leaks

Visible Light

💡 Everything we see! 🔬 Microscopes — See tiny things 📹 Cameras — Capture memories

Ultraviolet

🏖️ Tanning — (but be careful!) 💧 Water Purification — Kill bacteria 🔍 Forensics — Detect hidden evidence

X-rays

🦴 Medical Imaging — See inside bodies ✈️ Airport Security — Check luggage 🔬 Material Analysis — Study crystals

Gamma Rays

🏥 Cancer Treatment — Kill tumor cells ☢️ Sterilization — Clean medical equipment 🔭 Astronomy — Study violent cosmic events

⚡ EM Wave Energy and Intensity: The Power Within

Energy of EM Waves

Every EM wave carries energy. Higher frequency = more energy per wave.

E = h × f

Where:
E = energy of one photon (particle of light)
h = Planck's constant (6.63 × 10⁻³⁴ J·s)
f = frequency

Example:

• Blue light has higher frequency than red light
• Blue photons carry MORE energy than red photons
• That’s why UV (even higher frequency) can sunburn you!

Intensity: How Much Energy Arrives

Intensity = Power / Area = Energy / (Area × Time)

Units: Watts per square meter (W/m²)

Think of it like rain:

• Drizzle = low intensity
• Heavy storm = high intensity
• Same type of water, different amounts hitting you!

The Inverse Square Law

graph TD
    A["🔦 Light Source"] --> B["At distance d: Intensity = I"]
    B --> C["At distance 2d: Intensity = I/4"]
    C --> D["At distance 3d: Intensity = I/9"]
    E["Intensity drops as 1/distance²"]

Example: Move twice as far from a lamp → Light is 4 times dimmer Move three times as far → Light is 9 times dimmer

Energy Density

The energy stored in EM fields:

Total energy density = ε₀E² = B²/μ₀

(Electric and magnetic parts are equal!)

🎬 The Grand Finale: Why This Matters

Every time you:

• 📱 Send a text
• 🎵 Stream music
• 🔥 Feel warmth from the sun
• 👀 See anything at all

…you’re using electromagnetic waves!

Maxwell’s discovery that light, radio, X-rays, and gamma rays are all the same phenomenon—just at different frequencies—is one of the greatest unifications in physics history.

From the giant radio waves spanning mountains to the tiny gamma rays smaller than atoms, electromagnetic waves connect the entire universe.

You now understand the invisible messengers that carry information, energy, and light across the cosmos! 🌟

🧠 Quick Recap

graph LR
    A["EM Waves Summary"] --> B["Displacement Current"]
    A --> C[Maxwell's Equations]
    A --> D["Wave Properties"]
    A --> E["Speed = 3×10⁸ m/s"]
    A --> F["EM Spectrum"]
    A --> G["Applications"]
    A --> H["Energy & Intensity"]
    B --> I["Changing E-field acts like current"]
    C --> J["4 laws unifying E & M"]
    D --> K["c = λ × f"]
    F --> L["Radio → Gamma"]
    H --> M["E = hf, I ∝ 1/r²"]

You did it! 🎉 From mysterious displacement currents to life-saving X-rays, you now see how electromagnetic waves shape our entire technological world.
