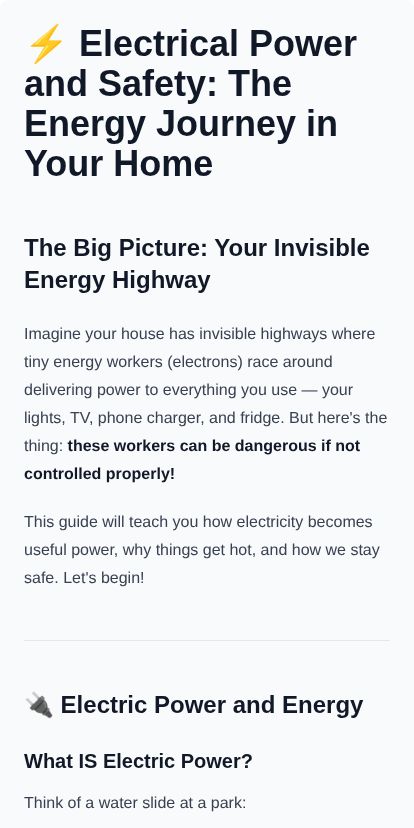

⚡ Electrical Power and Safety: The Energy Journey in Your Home
The Big Picture: Your Invisible Energy Highway
Imagine your house has invisible highways where tiny energy workers (electrons) race around delivering power to everything you use — your lights, TV, phone charger, and fridge. But here’s the thing: these workers can be dangerous if not controlled properly!
This guide will teach you how electricity becomes useful power, why things get hot, and how we stay safe. Let’s begin!
🔌 Electric Power and Energy
What IS Electric Power?
Think of a water slide at a park:
- Voltage = How high the slide is (the push)
- Current = How many kids go down per second (the flow)
- Power = How much fun-energy is delivered = Height × Kids flowing
The Formula:
Power (P) = Voltage (V) × Current (I)
P = V × I
Power is measured in Watts (W).
Simple Example
A light bulb says “60W” on it. If your home has 120V:
60W = 120V × ?
Current = 60 ÷ 120 = 0.5 Amperes
So, 0.5 amps of current flows through that bulb!
What About Energy?
Power is like speed. Energy is like distance traveled.
If you run fast (high power) for a long time, you cover more distance (more energy).
The Formula:
Energy = Power × Time
E = P × t
Energy is measured in Joules (J) or kilowatt-hours (kWh).
Real-Life Example
Your 100W fan runs for 5 hours:
Energy = 100W × 5h = 500 Wh = 0.5 kWh
This is what your electricity bill charges you for!
graph TD A["🔋 Voltage Push"] --> B["⚡ Current Flows"] B --> C["💡 Power Delivered"] C --> D["⏱️ Over Time = Energy Used"] D --> E["💰 Electricity Bill"]
🔥 Joule Heating: Why Wires Get Hot
The Discovery Story
A scientist named James Joule discovered something cool: when electricity flows through a wire, it makes the wire HOT!
It’s like when you rub your hands together really fast — friction creates heat. Electrons bumping into atoms in the wire create heat too!
The Magic Formula
Heat = Current² × Resistance × Time
H = I²Rt
This is called Joule’s Law or the Heating Effect of Current.
Why Does This Matter?
Good Uses of Joule Heating:
- 🍞 Toasters — wire gets red hot, toasts bread
- 💡 Incandescent bulbs — wire glows and makes light
- 🔥 Electric heaters — wires warm your room
- ⚡ Electric irons — hot plate smooths clothes
Bad Effects (Problems!):
- Wires can overheat and melt
- Can start fires if current is too high
- Wastes energy as unwanted heat
Simple Example
Why do phone chargers feel warm? The tiny wires inside have resistance, and current flowing through them creates heat. That’s Joule heating in action!
graph TD A["Current Flows"] --> B["Electrons Hit Atoms"] B --> C["Friction Creates Heat"] C --> D{Controlled?} D -->|Yes| E["✅ Useful: Heater, Toaster"] D -->|No| F["❌ Dangerous: Fire Risk"]
🌍 Grounding and Earthing: Your Safety Anchor
What’s the Problem?
Sometimes, electricity goes where it shouldn’t. Imagine a wire inside your washing machine breaks and touches the metal body. Now the whole machine is “live” — touching it could shock you!
The Solution: Earthing
We connect a wire from metal appliances straight into the ground (literally, into the earth under your house).
Why Earth? The Earth is a giant conductor that can absorb unlimited electricity. It’s like a huge sponge for electric current!
How It Works
graph TD A["⚠️ Fault: Wire Touches Metal Body"] --> B["Current Has 2 Paths"] B --> C["Path 1: Through You = SHOCK!"] B --> D["Path 2: Through Earth Wire = SAFE!"] D --> E["Current Goes to Ground"] E --> F["✅ You Stay Safe"]
Electricity is lazy — it takes the easiest path. The earth wire has almost zero resistance, so current flows there instead of through you!
Real-Life Example
Look at your 3-pin plug:
- Live (Brown) — Brings current in
- Neutral (Blue) — Takes current back
- Earth (Green/Yellow) — Safety escape route
That third pin saves lives!
🔒 Fuses and Circuit Breakers: The Bodyguards
The Problem They Solve
What if too much current flows? Wires overheat. Things catch fire. We need a bodyguard that cuts the power when danger appears!
Fuses: The One-Time Hero
A fuse is a thin wire that melts when too much current flows through it.
How it works:
- Normal current → Fuse is fine
- Too much current → Fuse heats up (Joule heating!)
- Wire melts → Circuit breaks → Power stops
- Danger avoided!
Catch: Once a fuse melts, you must replace it.
Fuse Ratings Example
| Appliance | Power | Current Needed | Fuse to Use |
|---|---|---|---|
| Phone charger | 5W | 0.04A | 1A fuse |
| Lamp | 60W | 0.5A | 3A fuse |
| Heater | 2000W | 8.3A | 13A fuse |
Always pick a fuse slightly higher than the normal current!
Circuit Breakers: The Reusable Guardian
Circuit breakers do the same job but use a switch instead of melting wire.
Advantages:
- Just flip the switch to reset — no replacement needed
- Faster response
- Can handle repeated trips
graph TD A["⚡ Current Flows"] --> B{Too Much?} B -->|No| C["✅ Everything Normal"] B -->|Yes| D["🔥 Danger Detected!"] D --> E{Fuse or Breaker?} E -->|Fuse| F["Wire Melts, Circuit Breaks"] E -->|Breaker| G["Switch Trips, Circuit Breaks"] F --> H["Replace Fuse"] G --> I["Reset Switch"]
Real-Life Example
Your hair dryer short circuits. In a split second:
- Without protection: Wires overheat → Fire risk!
- With fuse/breaker: Power cuts instantly → Safe!
🏠 House Wiring and Safety: Putting It All Together
The Grand Tour of Your Home’s Electrical System
Your house electricity comes from the power station through these steps:
graph TD A["🏭 Power Station"] --> B["High Voltage Lines"] B --> C["Transformer Reduces Voltage"] C --> D["🏠 Your House Main Supply"] D --> E["Electric Meter Counts Usage"] E --> F["Main Switch Controls All"] F --> G["Distribution Box"] G --> H["Individual Circuits"] H --> I["💡 Lights"] H --> J["🔌 Sockets"] H --> K["🍳 Kitchen Appliances"]
Key Safety Components
1. Main Switch
- Master control for your whole house
- Turn OFF during emergencies or repairs
2. Distribution Box (Fuse Box)
- Contains multiple circuit breakers
- Each breaker protects one circuit (lights, kitchen, etc.)
- If one trips, others keep working!
3. Wiring Colors (Remember These!)
| Wire | Color | Job |
|---|---|---|
| Live | Brown/Red | Brings power IN |
| Neutral | Blue/Black | Takes power OUT |
| Earth | Green-Yellow | Safety ground |
Safety Rules for Your Home
DO’s:
- ✅ Use 3-pin plugs for appliances with metal bodies
- ✅ Check for frayed wires regularly
- ✅ Keep water away from electrical points
- ✅ Turn off main switch before any repair
DON’T’s:
- ❌ Never overload a socket with too many plugs
- ❌ Never use appliances with wet hands
- ❌ Never ignore a tripping circuit breaker — find the cause!
- ❌ Never use higher-rated fuses to stop tripping
Simple Example: Overloading
You plug a heater (2000W), iron (1000W), and kettle (1500W) into one socket:
Total = 2000 + 1000 + 1500 = 4500W
At 230V: Current = 4500 ÷ 230 = 19.5A
A normal socket handles only 13A. Result? Trip! (Or worse, fire without protection!)
🎯 The Big Summary
| Concept | What It Is | Why It Matters |
|---|---|---|
| Electric Power | P = V × I | Measures how fast energy is delivered |
| Electrical Energy | E = P × t | What you pay for in bills |
| Joule Heating | H = I²Rt | Wires get hot; useful AND dangerous |
| Earthing | Ground connection | Saves you from shocks |
| Fuse | Melting safety wire | Stops overcurrent, one-time use |
| Circuit Breaker | Tripping switch | Stops overcurrent, reusable |
| House Wiring | Complete system | Powers everything safely |
💪 You’ve Got This!
Electricity isn’t scary when you understand it. Now you know:
- How power flows and costs money
- Why your toaster gets hot (on purpose!)
- Why that third pin exists on your plug
- How fuses and breakers protect your home
- The complete journey of electricity in your house
Remember: Electricity is a powerful servant but a dangerous master. Respect it, understand it, and stay safe!
⚡ Power up your knowledge. Stay grounded in safety! ⚡
