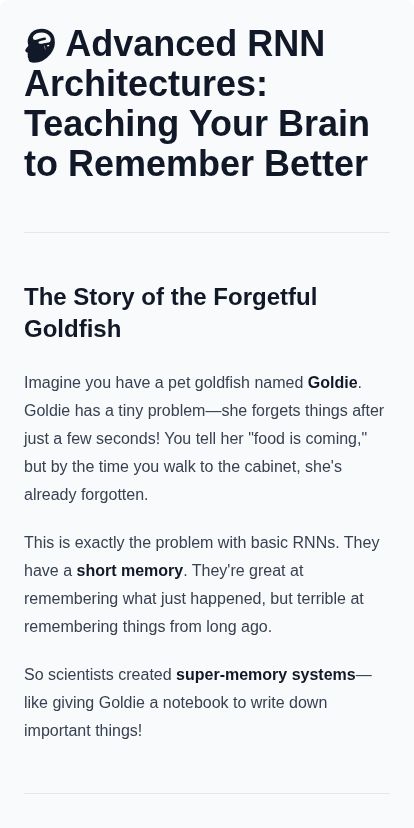

🧠 Advanced RNN Architectures: Teaching Your Brain to Remember Better

The Story of the Forgetful Goldfish

Imagine you have a pet goldfish named Goldie. Goldie has a tiny problem—she forgets things after just a few seconds! You tell her “food is coming,” but by the time you walk to the cabinet, she’s already forgotten.

This is exactly the problem with basic RNNs. They have a short memory. They’re great at remembering what just happened, but terrible at remembering things from long ago.

So scientists created super-memory systems—like giving Goldie a notebook to write down important things!

🏰 LSTM Architecture: The Castle with Magic Gates

LSTM stands for Long Short-Term Memory. Think of it like a castle that protects important memories.

The Story

Imagine you’re the king of a castle. Every day, messengers arrive with news. Some news is important (like “the enemy is coming!”), and some is not (like “it’s cloudy today”).

Your castle has a special room called the Cell State—a long corridor that runs through the entire castle. Only the MOST important messages travel through this corridor unchanged.

┌─────────────────────────────────┐
│         LSTM CASTLE             │
│                                 │
│   📜 Cell State (Long Memory)   │
│   ═══════════════════════════   │
│                                 │
│   🚪 Gate 1: What to forget     │
│   🚪 Gate 2: What to remember   │
│   🚪 Gate 3: What to tell       │
│                                 │
└─────────────────────────────────┘

Why LSTM Works

• Normal RNN: Like writing on sand—waves wash it away
• LSTM: Like writing in a book—you choose what stays

Real Example:

“The cat, which was orange and fluffy and loved to sleep in sunny spots, sat on the mat.”

An LSTM remembers “cat” is the subject, even after all those extra words!

🚪 LSTM Gates: The Three Magic Doors

LSTM has three special gates. Each gate is like a door that can be open (1) or closed (0), or anywhere in between.

Gate 1: The Forget Gate 🗑️

Question it asks: “Should I forget old stuff?”

Think of it like cleaning your room:

• “Do I still need this toy from last year?”
• If NO → throw it out (gate = 0)
• If YES → keep it (gate = 1)

Old Memory → [Forget Gate] → What Survives
   10          × 0.2           = 2

Gate 2: The Input Gate ➕

Question it asks: “What new stuff should I remember?”

It’s like deciding what to add to your scrapbook:

• “Is this photo worth keeping?”
• If YES → paste it in!
• If NO → skip it

New Info → [Input Gate] → What Gets Added
  "Cat"      × 0.9          = Strong Memory

Gate 3: The Output Gate 📤

Question it asks: “What should I tell others right now?”

Like when your teacher asks “What did you learn?”

• You don’t say EVERYTHING
• You pick the relevant answer

My Memory → [Output Gate] → What I Say
  (lots!)      × focus        = Answer

How Gates Work Together

graph TD
    A["New Input"] --> B["Forget Gate"]
    B --> C["Cell State Updated"]
    A --> D["Input Gate"]
    D --> C
    C --> E["Output Gate"]
    E --> F["Output"]

Simple Example:

Sentence: “I grew up in France. I speak fluent ___”

1. Forget Gate: Forgets irrelevant early words
2. Input Gate: Strongly remembers “France”
3. Output Gate: Outputs “French” as the answer

⚡ GRU Architecture: The Simpler Castle

GRU stands for Gated Recurrent Unit. It’s like LSTM’s younger sibling—does the same job but with fewer gates!

The Story

Imagine LSTM is a big fancy house with three doors. GRU is a cozy cottage with just two doors. Both keep you warm, but the cottage is simpler to build!

GRU Has Just 2 Gates

┌─────────────────────────────────┐
│          GRU COTTAGE            │
│                                 │
│   🚪 Reset Gate: Fresh start?   │
│   🚪 Update Gate: Mix old+new   │
│                                 │
│   (No separate cell state!)     │
└─────────────────────────────────┘

GRU vs LSTM: Quick Compare

When to Use GRU?

• ✅ When you need speed
• ✅ When you have less data
• ✅ When the task is simpler

Real Example:

Task: Predict next word in "The dog barks"

GRU thinks:
1. Reset Gate: "Keep context of dog"
2. Update Gate: "Mix with barks pattern"
3. Output: "loudly" (probable next word)

🔄 Bidirectional RNNs: Reading Both Ways

The Story

Imagine you’re trying to understand this sentence:

“The bank by the river was beautiful.”

If you only read left-to-right, when you see “bank,” you might think of a money bank. But if you could also peek ahead and see “river,” you’d know it’s a riverbank!

Bidirectional RNNs read sentences both ways—forward AND backward!

How It Works

graph LR
    subgraph Forward
    A1["The"] --> A2["cat"] --> A3["sat"]
    end
    subgraph Backward
    B3["sat"] --> B2["cat"] --> B1["The"]
    end

Then we combine both readings for each word!

Visual Diagram

Forward:  →  →  →  →  →
          The cat sat on mat
Backward: ←  ←  ←  ←  ←

Each word sees PAST + FUTURE!

Why This Helps

Unidirectional (one-way):

• At “cat”, only knows “The” came before
• Can’t see what comes after

Bidirectional (two-way):

• At “cat”, knows “The” AND “sat on mat”
• Full context!

Real Example: Fill in the Blank

“The ___ was barking loudly at the mailman.”

Forward reading: Could be dog? Cat? Person? Backward reading: “barking” → definitely a dog! Combined: High confidence → dog!

When to Use Bidirectional?

• ✅ Text classification
• ✅ Named entity recognition
• ✅ Translation
• ✅ Any task where you have the FULL sequence

NOT for:

• ❌ Real-time prediction (can’t see future)
• ❌ Live speech recognition
• ❌ Streaming data

🎯 Putting It All Together

Here’s how all pieces connect:

graph TD
    A["Basic RNN"] --> B["Problem: Forgets!"]
    B --> C["Solution: LSTM"]
    C --> D["3 Gates Control Memory"]
    B --> E["Simpler Solution: GRU"]
    E --> F["2 Gates, Faster"]
    C --> G["Add Bidirectional"]
    E --> G
    G --> H["See Past AND Future!"]

Quick Summary Table

🌟 Key Takeaways

1. LSTM = Castle with 3 gates (forget, input, output)
2. Gates = Doors that control what to remember/forget
3. GRU = Simpler version with 2 gates (reset, update)
4. Bidirectional = Read forward AND backward

The Magic Formula

Good Memory = Right Architecture + Right Direction

LSTM/GRU → Long-term memory
Bidirectional → Full context
Together → POWERFUL! 🚀

💡 Remember This

“LSTMs and GRUs are like giving a goldfish a notebook. Bidirectional is like giving the goldfish eyes in the back of its head!”

Now you understand how neural networks remember—and you’ll never forget it! 🧠✨
