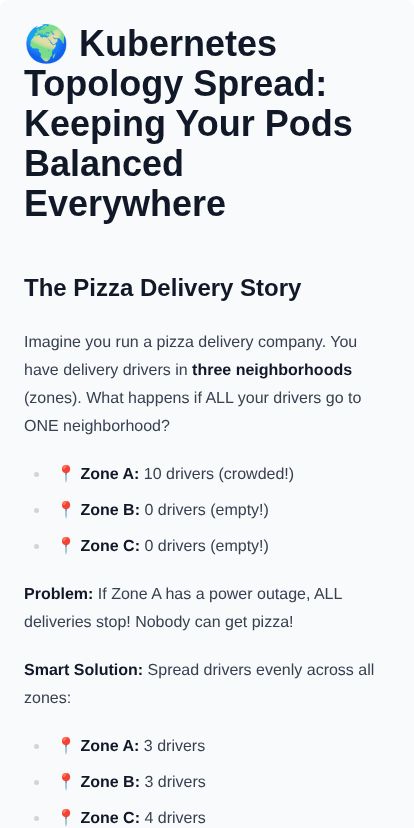

🌍 Kubernetes Topology Spread: Keeping Your Pods Balanced Everywhere

The Pizza Delivery Story

Imagine you run a pizza delivery company. You have delivery drivers in three neighborhoods (zones). What happens if ALL your drivers go to ONE neighborhood?

• 📍 Zone A: 10 drivers (crowded!)
• 📍 Zone B: 0 drivers (empty!)
• 📍 Zone C: 0 drivers (empty!)

Problem: If Zone A has a power outage, ALL deliveries stop! Nobody can get pizza!

Smart Solution: Spread drivers evenly across all zones:

• 📍 Zone A: 3 drivers
• 📍 Zone B: 3 drivers
• 📍 Zone C: 4 drivers

Now if one zone fails, the other zones still work! This is exactly what Kubernetes Topology Spread does for your Pods.

🎯 What is Topology Spread?

Topology Spread tells Kubernetes: “Don’t put all my eggs in one basket!”

It spreads your Pods across:

• Different zones (like data center regions)
• Different nodes (like individual servers)
• Different racks (like server cabinets)

graph TD
    A["Your Application"] --> B["Pod 1"]
    A --> C["Pod 2"]
    A --> D["Pod 3"]
    B --> E["Zone A"]
    C --> F["Zone B"]
    D --> G["Zone C"]
    style E fill:#90EE90
    style F fill:#87CEEB
    style G fill:#FFB6C1

📋 Topology Spread Constraints

Think of constraints as rules you give to a school bus driver:

“Make sure kids from the same family don’t ALL sit in the front. Spread them out!”

The Three Magic Words

Every topology spread constraint has these parts:

Simple Example

apiVersion: v1
kind: Pod
metadata:
  name: my-app
  labels:
    app: web
spec:
  topologySpreadConstraints:
  - maxSkew: 1
    topologyKey: topology.kubernetes.io/zone
    whenUnsatisfiable: DoNotSchedule
    labelSelector:
      matchLabels:
        app: web
  containers:
  - name: web
    image: nginx

What this says:

1. maxSkew: 1 → Zones can differ by only 1 Pod
2. topologyKey: zone → Spread across availability zones
3. DoNotSchedule → If you can’t balance, don’t schedule at all!

🔧 Topology Spread Config

Understanding maxSkew

maxSkew is like a seesaw rule:

Zone A: 🟢🟢🟢 (3 pods)
Zone B: 🟢🟢   (2 pods)
Difference = 1 ✅ (maxSkew: 1 is satisfied!)

Zone A: 🟢🟢🟢🟢 (4 pods)
Zone B: 🟢🟢     (2 pods)
Difference = 2 ❌ (maxSkew: 1 is broken!)

whenUnsatisfiable Options

Advanced Example with Multiple Constraints

spec:
  topologySpreadConstraints:
  # Rule 1: Spread across zones
  - maxSkew: 1
    topologyKey: topology.kubernetes.io/zone
    whenUnsatisfiable: DoNotSchedule
    labelSelector:
      matchLabels:
        app: web
  # Rule 2: Also spread across nodes
  - maxSkew: 2
    topologyKey: kubernetes.io/hostname
    whenUnsatisfiable: ScheduleAnyway
    labelSelector:
      matchLabels:
        app: web

This says:

• Zones MUST be balanced (difference ≤ 1)
• Nodes SHOULD be balanced (difference ≤ 2, but flexible)

🗺️ Zone and Region Awareness

What are Zones and Regions?

Think of it like addresses:

• Region = Country (us-east, eu-west)
• Zone = City within the country (us-east-1a, us-east-1b)

graph TD
    R["Region: us-east"] --> Z1["Zone: us-east-1a"]
    R --> Z2["Zone: us-east-1b"]
    R --> Z3["Zone: us-east-1c"]
    Z1 --> N1["Node 1"]
    Z1 --> N2["Node 2"]
    Z2 --> N3["Node 3"]
    Z2 --> N4["Node 4"]
    Z3 --> N5["Node 5"]

Common Topology Keys

Real-World Zone Spread Example

apiVersion: apps/v1
kind: Deployment
metadata:
  name: web-server
spec:
  replicas: 6
  selector:
    matchLabels:
      app: web
  template:
    metadata:
      labels:
        app: web
    spec:
      topologySpreadConstraints:
      - maxSkew: 1
        topologyKey: topology.kubernetes.io/zone
        whenUnsatisfiable: DoNotSchedule
        labelSelector:
          matchLabels:
            app: web
      containers:
      - name: nginx
        image: nginx:latest

Result with 3 zones:

• Zone A: 2 Pods ✅
• Zone B: 2 Pods ✅
• Zone C: 2 Pods ✅

If Zone C fails:

• Your app still runs with 4 Pods in Zones A and B!

💡 Quick Tips

✅ Do This

• Use maxSkew: 1 for critical apps
• Combine zone AND node spreading
• Use DoNotSchedule when balance is critical

❌ Avoid This

• Setting maxSkew: 0 (impossible to satisfy!)
• Forgetting to add labelSelector
• Using only region spread (zones give better protection)

🎓 Summary

🚀 You’re Ready!

Now you understand how Kubernetes keeps your Pods spread out like a smart pizza delivery manager. No more putting all drivers in one neighborhood!

Remember: Topology Spread = High Availability = Happy Users! 🎉
