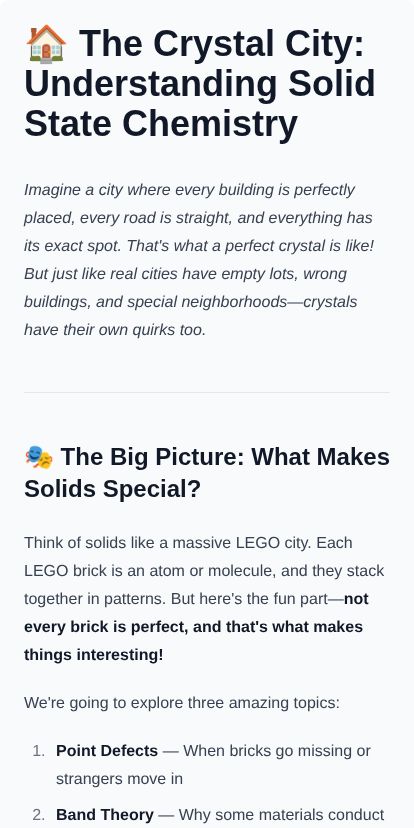

🏠 The Crystal City: Understanding Solid State Chemistry

Imagine a city where every building is perfectly placed, every road is straight, and everything has its exact spot. That’s what a perfect crystal is like! But just like real cities have empty lots, wrong buildings, and special neighborhoods—crystals have their own quirks too.

🎭 The Big Picture: What Makes Solids Special?

Think of solids like a massive LEGO city. Each LEGO brick is an atom or molecule, and they stack together in patterns. But here’s the fun part—not every brick is perfect, and that’s what makes things interesting!

We’re going to explore three amazing topics:

1. Point Defects — When bricks go missing or strangers move in
2. Band Theory — Why some materials conduct electricity and others don’t
3. Magnetic Solids — Why magnets stick to your fridge

🕳️ Part 1: Point Defects — The Missing Bricks

What Are Point Defects?

Imagine you built a perfect LEGO wall, but:

• Some spots have no brick (empty!)
• Some spots have a different colored brick
• Some have extra bricks squished in between

These “mistakes” in crystals are called point defects. They happen at just one spot (a “point”).

Types of Point Defects

1. 🔲 Vacancy Defect (The Empty Seat)

Story: Picture a movie theater where every seat should be full, but some people didn’t show up. Those empty seats are vacancies.

Perfect crystal:    Crystal with vacancy:
🔵 🔵 🔵 🔵         🔵 🔵 🔵 🔵
🔵 🔵 🔵 🔵         🔵 ⬜ 🔵 🔵  ← Empty!
🔵 🔵 🔵 🔵         🔵 🔵 🔵 🔵

Example: When you heat a metal, atoms jiggle so much that some leave their spots, creating vacancies. This is why hot metals are softer!

2. 🟡 Interstitial Defect (The Uninvited Guest)

Story: Imagine someone brought an extra friend to a packed concert, and they squeezed into the spaces between seats!

Normal crystal:       With interstitial:
🔵   🔵   🔵          🔵   🔵   🔵
                           🟡 ← Squeezed in!
🔵   🔵   🔵          🔵   🔵   🔵

Example: Carbon atoms squeeze between iron atoms to make steel. The tiny carbon atoms fit in the gaps!

3. 👀 Schottky Defect (The Balanced Disappearance)

Story: In an ionic crystal (like table salt NaCl), if only positive ions left, the crystal would become charged. So nature is clever—equal numbers of positive AND negative ions leave together!

Perfect NaCl:         Schottky Defect:
🔴 🔵 🔴 🔵           🔴 🔵 🔴 🔵
🔵 🔴 🔵 🔴           🔵 ⬜ 🔵 🔴  ← Na⁺ missing
🔴 🔵 🔴 🔵           🔴 🔵 ⬜ 🔵  ← Cl⁻ missing
🔵 🔴 🔵 🔴           🔵 🔴 🔵 🔴

Key Point: Density decreases (fewer atoms, same space)!

Example: Table salt (NaCl) and cesium chloride (CsCl) show this defect.

4. 🔄 Frenkel Defect (The Wanderer)

Story: An ion doesn’t leave the crystal—it just moves to a wrong spot (an interstitial position). Like someone leaving their assigned seat to sit in the aisle!

Before:              After Frenkel Defect:
🔴 🔵 🔴 🔵          🔴 🔵 🔴 🔵
🔵 🔴 🔵 🔴          🔵 ⬜ 🔵 🔴  ← Empty original spot
🔴 🔵 🔴 🔵          🔴 🔵🔴🔴 🔵  ← Ion moved here!

Key Point: Density stays the same (no atoms left, just moved)!

Example: Silver chloride (AgCl) and zinc oxide (ZnO) show this. The small Ag⁺ ion can squeeze into gaps.

🎨 Impurity Defects — The Colorful Strangers

Substitutional Impurity

Story: What if a different type of brick replaced one of yours? Like putting a red LEGO in a wall of blue ones!

Example: Brass = Copper atoms with some replaced by Zinc atoms

Interstitial Impurity

Story: A completely different small atom squeezes into the gaps.

Example: Steel = Iron with small carbon atoms in the gaps

🌈 Non-Stoichiometric Defects — When Ratios Go Wrong

Sometimes crystals don’t have the “perfect recipe.” Instead of exactly 1:1, you might have 1:0.98!

Metal Excess (Extra Metal):

• Heating NaCl with Na vapor → Extra Na⁺ ions enter
• Electrons sit in Cl⁻ vacancies (F-centers)
• These electrons give color! (NaCl becomes yellow)

Metal Deficiency (Missing Metal):

• Some metals can exist in multiple charge states
• Fe in FeO can be Fe²⁺ or Fe³⁺
• If Fe³⁺ replaces Fe²⁺, you need fewer iron atoms overall

⚡ Part 2: Band Theory — The Highway System

The Big Idea: Why Do Some Things Conduct Electricity?

Imagine electrons are cars, and they need roads to travel. Band theory explains the road system for electrons in solids!

From Atoms to Bands

graph TD
    A["Single Atom"] --> B["Has specific<br/>energy levels"]
    B --> C["Like steps<br/>on a ladder"]
    D["Many Atoms<br/>Together"] --> E["Energy levels<br/>spread out"]
    E --> F["Form BANDS<br/>like highways"]

Story: One atom has energy levels like steps on a ladder. But when BILLIONS of atoms come together, their steps merge into wide bands—like individual paths merging into massive highways!

The Two Important Bands

🚗 Valence Band (The Parking Lot)

• Where electrons normally “park”
• Usually full of electrons
• Electrons here are “stuck” doing their job holding atoms together

🛣️ Conduction Band (The Highway)

• Where electrons can move freely
• Electrons here can carry electricity
• Usually empty or partially filled

🚧 Band Gap (The Barrier)

The space between the parking lot and the highway. How big this gap is determines everything!

Three Types of Materials

graph TD
    subgraph Conductor
    A1["Conduction Band"]
    A2["Valence Band"]
    A1 --- A2
    end

    subgraph Semiconductor
    B1["Conduction Band"]
    B2["Small Gap"]
    B3["Valence Band"]
    B1 -.- B2
    B2 -.- B3
    end

    subgraph Insulator
    C1["Conduction Band"]
    C2["BIG GAP"]
    C3["Valence Band"]
    end

1. 🔌 Conductors (Metals like Copper)

• No gap! Valence and conduction bands overlap
• Electrons flow freely, like cars on an open highway
• Example: Copper wires in your phone charger

2. 💡 Semiconductors (Silicon, Germanium)

• Small gap (0.1 to 3 eV)
• Electrons can “jump” if given a little energy (heat, light)
• Example: Computer chips, solar panels

3. 🧱 Insulators (Rubber, Glass)

• HUGE gap (> 3 eV)
• Electrons can’t jump—like a canyon too wide to cross
• Example: Rubber coating on wires (keeps electricity IN)

🎛️ Doping: Making Semiconductors Useful

Pure semiconductors aren’t great conductors. But add a tiny bit of “impurity” and magic happens!

N-Type (Extra Electrons)

Add atoms with MORE electrons than silicon (like Phosphorus):

• Phosphorus has 5 outer electrons, silicon has 4
• Extra electron is free to move!
• N = Negative (extra electrons)

Si — Si — Si — Si
 |    |    |    |
Si — P* — Si — Si  ← P brings extra e⁻
 |    |    |    |
Si — Si — Si — Si

P-Type (Missing Electrons = Holes)

Add atoms with FEWER electrons (like Boron):

• Boron has 3 outer electrons
• Creates a “hole” that acts like a positive charge moving
• P = Positive (holes)

Si — Si — Si — Si
 |    |    |    |
Si — B* — Si — Si  ← B creates a hole ⭕
 |    |    |    |
Si — Si — Si — Si

Why This Matters: Your phone, computer, TV—all work because of doped semiconductors!

🧲 Part 3: Magnetic Solids — The Invisible Force

What Makes Things Magnetic?

Every electron is like a tiny spinning magnet! This comes from:

1. Spin — electrons spin like tiny tops
2. Orbital motion — electrons orbit the nucleus

But here’s the catch: In most atoms, electrons pair up with opposite spins, canceling each other out. No net magnetism!

Types of Magnetic Materials

graph TD
    M["Magnetic<br/>Materials"] --> D["Diamagnetic"]
    M --> P["Paramagnetic"]
    M --> F["Ferromagnetic"]
    M --> AF["Antiferromagnetic"]
    M --> FI["Ferrimagnetic"]

1. 💨 Diamagnetic — The Shy Ones

Story: Imagine someone who slightly leans AWAY from magnets. All electrons paired, no permanent magnetic moment.

Behavior:

• Weakly repelled by magnetic fields
• Very weak effect

Examples: Water, copper, gold, bismuth

Real Life: Diamagnetic levitation can make frogs float! (Yes, real scientists did this!)

2. 🧭 Paramagnetic — The Followers

Story: These materials have unpaired electrons (tiny magnets) but they point in random directions. When a magnet comes near, they align WITH the field—like compass needles all pointing north!

Behavior:

• Weakly attracted to magnetic fields
• Lose magnetism when field is removed
• Alignment randomizes due to thermal motion

Examples: Aluminum, oxygen (O₂), titanium

No field:     With field:
↗ ↙ ↖ ↘      ↑ ↑ ↑ ↑
↙ ↗ ↘ ↖      ↑ ↑ ↑ ↑
  Random       Aligned!

3. 🧲 Ferromagnetic — The Strong Ones

Story: These are the REAL magnets! Unpaired electrons AND they naturally align in the same direction within regions called domains.

Behavior:

• Strongly attracted to magnetic fields
• Can become permanent magnets
• Have domains that can align

Examples: Iron (Fe), Cobalt (Co), Nickel (Ni)

Domains in Ferromagnet:
┌────────┬────────┐
│ ↑↑↑↑↑  │ →→→→→  │  Before: Random domains
├────────┼────────┤
│ ←←←←←  │ ↓↓↓↓↓  │
└────────┴────────┘

┌─────────────────┐
│ ↑↑↑↑↑↑↑↑↑↑↑↑↑↑ │  After: All aligned
│ ↑↑↑↑↑↑↑↑↑↑↑↑↑↑ │  = STRONG MAGNET!
└─────────────────┘

Curie Temperature: Heat a ferromagnet too much, and it loses its magnetism! The thermal energy randomizes the spins. Iron loses magnetism at 770°C.

4. ⚖️ Antiferromagnetic — The Opposites

Story: Neighboring electron spins align in opposite directions. They cancel out!

Behavior:

• Net magnetism ≈ zero
• Alternating up-down pattern

Example: Manganese oxide (MnO)

↑ ↓ ↑ ↓ ↑ ↓
↓ ↑ ↓ ↑ ↓ ↑   Neighbors are OPPOSITE
↑ ↓ ↑ ↓ ↑ ↓   Net = Zero!

5. 🎭 Ferrimagnetic — The Unequal Opposites

Story: Like antiferromagnetic, but the opposing spins aren’t equal in strength. One direction wins!

Behavior:

• Net magnetism exists (but weaker than ferromagnetic)
• Opposing but unequal magnetic moments

Example: Magnetite (Fe₃O₄), ferrites

↑↑ ↓ ↑↑ ↓ ↑↑ ↓
Big Small Big Small
  Net = ↑ (Some magnetism)

Why It Matters: Ferrites are used in:

• Computer hard drives
• Speakers
• Microwave ovens
• Refrigerator magnets!

🎯 Quick Summary

🚀 Why Does This Matter?

Understanding these concepts helps us create:

• Faster computers (semiconductor doping)
• Better batteries (defect engineering)
• Stronger magnets (ferromagnetic materials)
• Data storage (magnetic hard drives)
• Solar panels (semiconductor band gaps)

You now understand the hidden world inside every solid around you. From the chair you sit on to the phone in your hand—it’s all about atoms, their defects, their energy bands, and their magnetic personalities!

You’ve got this! 💪
