Crystal Structures

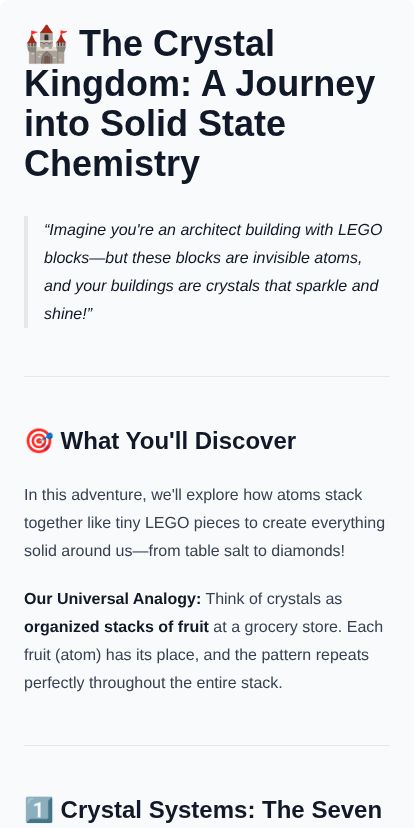

🏰 The Crystal Kingdom: A Journey into Solid State Chemistry

Imagine you’re an architect building with LEGO blocks—but these blocks are invisible atoms, and your buildings are crystals that sparkle and shine!

🎯 What You’ll Discover

In this adventure, we’ll explore how atoms stack together like tiny LEGO pieces to create everything solid around us—from table salt to diamonds!

Our Universal Analogy: Think of crystals as organized stacks of fruit at a grocery store. Each fruit (atom) has its place, and the pattern repeats perfectly throughout the entire stack.

1️⃣ Crystal Systems: The Seven Ways to Stack

The Big Idea

Just like there are different ways to arrange boxes in a warehouse, atoms can arrange themselves in 7 different patterns called crystal systems.

Think of It This Way

Imagine you have building blocks. You can stack them:

• In a perfect cube shape (like dice)
• In a stretched rectangle (like a cereal box)
• In a tilted way (like a leaning tower)

graph TD
    A["7 Crystal Systems"] --> B["Cubic"]
    A --> C["Tetragonal"]
    A --> D["Orthorhombic"]
    A --> E["Hexagonal"]
    A --> F["Trigonal"]
    A --> G["Monoclinic"]
    A --> H["Triclinic"]
    B --> I["🧊 Table Salt"]
    E --> J["❄️ Snowflakes"]

The 7 Systems Simply Explained

Example: When you look at table salt under a microscope, each tiny grain is a perfect little cube! That’s the cubic crystal system in action.

2️⃣ Unit Cells and Lattices: The Repeating Pattern

The Big Idea

A unit cell is like ONE LEGO block. A lattice is what you get when you stack millions of these identical blocks together.

Think of It This Way

• Unit Cell = One tile on your bathroom floor
• Lattice = The entire tiled floor (same tile repeated everywhere!)

graph TD
    A["One Unit Cell"] --> B["Repeat in X direction"]
    B --> C["Repeat in Y direction"]
    C --> D["Repeat in Z direction"]
    D --> E["Complete Crystal Lattice!"]

Types of Unit Cells

1. Simple/Primitive Cubic

• Atoms only at the 8 corners
• Like putting a ball at each corner of a box
• Each corner atom is shared by 8 boxes, so: 1 atom per unit cell

2. Body-Centered Cubic (BCC)

• Corners + 1 atom right in the middle
• Like a box with a surprise inside!
• 2 atoms per unit cell

3. Face-Centered Cubic (FCC)

• Corners + atoms in the middle of each face
• Like putting stickers on all 6 sides of a box
• 4 atoms per unit cell

Example: Iron at room temperature is BCC. When you heat it up, it transforms to FCC! Same atoms, different arrangement.

3️⃣ Close Packing: Fitting the Most Marbles

The Big Idea

If you had a jar and wanted to fit as many marbles as possible, how would you arrange them? Nature figured this out billions of years ago!

Think of It This Way

Imagine stacking oranges at a fruit stand:

• First layer: Oranges touching in a flat pattern
• Second layer: Oranges sitting in the dips between first layer oranges
• Third layer: Where do you put them?

graph TD
    A["Layer A: First layer"] --> B["Layer B: Fits in gaps"]
    B --> C{Third Layer Choice}
    C --> D["Layer A again = HCP"]
    C --> E["New position C = CCP"]

The Two Champions of Close Packing

1. Hexagonal Close Packing (HCP) - Pattern: ABABAB

• Third layer goes directly above first layer
• Like stacking: Left → Right → Left → Right
• Example: Zinc, Magnesium

2. Cubic Close Packing (CCP) - Pattern: ABCABC

• Third layer goes to a NEW position
• Creates Face-Centered Cubic structure
• Example: Copper, Gold, Silver

The Magic Number: 74%

Both HCP and CCP fill 74% of space—the maximum possible for identical spheres! This is called the packing efficiency.

Example: When you pour sand into a bucket, it naturally settles into arrangements that maximize packing—nature loves efficiency!

4️⃣ Ionic Crystal Structures: Salt Castles

The Big Idea

When positive and negative ions get together, they arrange themselves to be as stable as possible—like friends who always sit together!

Think of It This Way

Imagine a checkerboard where:

• Red squares = Positive ions (cations)
• Black squares = Negative ions (anions)
• They alternate to keep everyone happy!

graph TD
    A["Ionic Crystals"] --> B["Rock Salt Type"]
    A --> C["Cesium Chloride Type"]
    A --> D["Zinc Blende Type"]
    A --> E["Fluorite Type"]
    B --> F["NaCl: 6 neighbors each"]
    C --> G["CsCl: 8 neighbors each"]

Important Structure Types

1. Rock Salt (NaCl) Structure

• Each Na⁺ is surrounded by 6 Cl⁻
• Each Cl⁻ is surrounded by 6 Na⁺
• Coordination Number: 6
• Example: Table salt, MgO

2. Cesium Chloride (CsCl) Structure

• Each Cs⁺ is surrounded by 8 Cl⁻
• Coordination Number: 8
• Works when cation is larger

3. Zinc Blende (ZnS) Structure

• Each Zn²⁺ is surrounded by 4 S²⁻
• Coordination Number: 4
• Tetrahedral arrangement

The Radius Ratio Rule The ratio of cation size to anion size determines which structure forms:

Example: NaCl has a radius ratio of 0.52, which falls in the 6-coordination range—that’s why it forms the rock salt structure!

5️⃣ Lattice Energy: The Glue That Holds It Together

The Big Idea

Lattice energy is the energy needed to pull apart a crystal into individual ions—like the effort to separate super-strong magnets!

Think of It This Way

Imagine a room full of magnets stuck together:

• Stronger magnets = More energy to separate
• Closer magnets = More energy to separate
• Lattice energy tells us how STRONG the crystal is!

The Formula (Simplified)

Lattice Energy ∝ (Charge₁ × Charge₂) / Distance

Higher charges → HIGHER lattice energy Smaller ions → HIGHER lattice energy (they get closer!)

Comparing Lattice Energies

Example: MgO has charges of +2 and -2, while NaCl has +1 and -1. That’s why MgO is SO much harder to melt (melting point 2852°C vs 801°C for NaCl)!

What Lattice Energy Tells Us

• High lattice energy → High melting point
• High lattice energy → Hard crystal
• High lattice energy → Less soluble in water

6️⃣ Born-Haber Cycle: The Energy Detective

The Big Idea

The Born-Haber cycle is like a treasure map that shows ALL the energy steps to make an ionic compound from scratch!

Think of It This Way

Imagine baking a cake and tracking EVERY bit of energy:

• Energy to preheat oven
• Energy from mixing
• Energy from baking
• Energy released when cake cools

The Born-Haber cycle does this for making crystals!

graph TD
    A["Elements: Na + ½Cl₂"] --> B["Sublimation: Na solid → gas"]
    B --> C["Dissociation: Cl₂ → 2Cl"]
    C --> D["Ionization: Na → Na⁺ + e⁻"]
    D --> E["Electron Affinity: Cl + e⁻ → Cl⁻"]
    E --> F["Lattice Energy: Ions → Crystal"]
    F --> G["NaCl Crystal!"]

The Steps for NaCl

The Magic of Energy Conservation

Using Hess’s Law, we can calculate ANY unknown step if we know all the others!

Formula:

ΔHf = ΔHsub + ½ΔHdiss + IE - EA - U

Where:

• ΔHf = Formation enthalpy
• ΔHsub = Sublimation
• ΔHdiss = Dissociation
• IE = Ionization Energy
• EA = Electron Affinity
• U = Lattice Energy

Example: If we know all other values but not the lattice energy, we can calculate it:

-411 = 108 + 121 + 496 - 349 - U
U = 787 kJ/mol ✓

🌟 Quick Summary

🎉 You Did It!

You now understand how atoms build magnificent crystal castles! From the 7 crystal systems to the energy that holds everything together, you’ve mastered the fundamentals of solid state chemistry.

Remember: Every time you sprinkle salt on your food, you’re looking at billions of perfectly arranged Na⁺ and Cl⁻ ions in beautiful cubic crystals!

“In the crystal kingdom, order creates beauty, and patterns create strength.”
