Bonding in Complexes

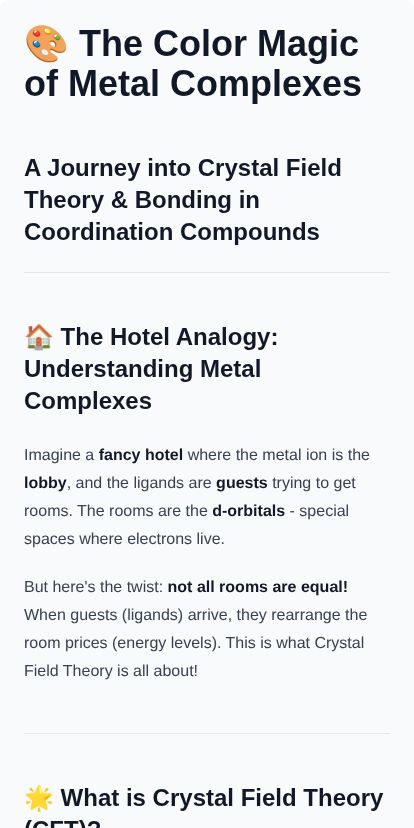

🎨 The Color Magic of Metal Complexes

A Journey into Crystal Field Theory & Bonding in Coordination Compounds

🏠 The Hotel Analogy: Understanding Metal Complexes

Imagine a fancy hotel where the metal ion is the lobby, and the ligands are guests trying to get rooms. The rooms are the d-orbitals - special spaces where electrons live.

But here’s the twist: not all rooms are equal! When guests (ligands) arrive, they rearrange the room prices (energy levels). This is what Crystal Field Theory is all about!

🌟 What is Crystal Field Theory (CFT)?

Crystal Field Theory explains how the color, magnetism, and stability of metal complexes work.

The Big Idea (Simple Version):

• Metal ions have 5 d-orbitals (5 rooms)
• Normally, all 5 rooms have the same energy (same price)
• When ligands approach, they push some rooms to higher energy
• This creates a split - some rooms become expensive, others stay cheap!

graph TD
    A["Free Metal Ion"] --> B["5 d-orbitals<br>All Same Energy"]
    B --> C["Ligands Approach!"]
    C --> D["Energy Split!"]
    D --> E["Some orbitals HIGH ↑"]
    D --> F["Some orbitals LOW ↓"]

Why Does This Happen?

Ligands are negatively charged or have lone pairs of electrons. When they come close to the metal:

• They repel the electrons in d-orbitals
• Orbitals pointing toward ligands get pushed to higher energy
• Orbitals pointing away from ligands stay at lower energy

Real Life Example: Think of magnets! If you push the same poles together, they repel. Ligand electrons repel d-orbital electrons the same way!

🔀 Crystal Field Splitting: The Energy Gap

Crystal Field Splitting is the energy difference between the high-energy and low-energy d-orbitals.

We call this gap: Δ (delta) or 10Dq

In Octahedral Complexes (6 Ligands)

Picture a metal ion with 6 ligands arranged like the corners of a dice:

• Top, Bottom, Front, Back, Left, Right

        ↑ z
        |
   L    |    L
    \   |   /
     \  |  /
      \ | /
  L ----M---- L  → y
      / | \
     /  |  \
    /   |   \
   L    |    L
        |
        ↓

The Split:

The e_g orbitals (2 orbitals) get pushed UP because they point directly at ligands.

The t_2g orbitals (3 orbitals) stay LOW because they point between ligands.

graph TD
    subgraph After Split
        A["e_g: HIGH ENERGY"]
        B["Gap = Δ_oct"]
        C["t_2g: LOW ENERGY"]
    end
    A --- B
    B --- C

In Tetrahedral Complexes (4 Ligands)

With only 4 ligands arranged like a pyramid:

• The opposite happens!
• t_2 orbitals go UP (they’re closer to ligands now)
• e orbitals stay LOW

Important: Δ_tetrahedral is much smaller than Δ_octahedral (about 4/9 of it)

🎰 High Spin vs Low Spin: The Electron’s Choice

Here’s where it gets exciting! Electrons filling d-orbitals face a choice:

The Dilemma:

1. Option A: Fill the low-energy orbitals first, then PAIR UP with another electron
2. Option B: Jump to the high-energy orbital to stay ALONE

What Decides?

It depends on which costs more energy:

• Pairing Energy (P): Energy needed to put two electrons in the same orbital
• Splitting Energy (Δ): Energy gap between low and high orbitals

graph TD
    A{Compare Δ vs P} -->|Δ > P| B["LOW SPIN<br>Electrons pair up<br>Stay in low orbitals"]
    A -->|Δ < P| C["HIGH SPIN&lt;br&gt;Electrons spread out&lt;br&gt;Go to high orbitals"]

Example: Iron(III) with 5 d-electrons

High Spin (Weak Ligand):

e_g:  ↑   ↑
      ___________
t_2g: ↑   ↑   ↑

All 5 electrons UNPAIRED → PARAMAGNETIC (magnetic!)

Low Spin (Strong Ligand):

e_g:  _   _
      ___________
t_2g: ↑↓  ↑↓  ↑

Only 1 electron unpaired → LESS MAGNETIC

Why Does This Matter?

Real Example:

• [Fe(H₂O)₆]³⁺ is HIGH SPIN (pale, paramagnetic)
• [Fe(CN)₆]³⁻ is LOW SPIN (deep yellow, less paramagnetic)

📊 The Spectrochemical Series: Ligand Power Rankings

Not all ligands are equal! Some create BIG splits (strong), others create small splits (weak).

The Official Ranking (Memorize This!)

WEAK ← ────────────────────────────── → STRONG

I⁻ < Br⁻ < Cl⁻ < F⁻ < OH⁻ < H₂O < NH₃ < en < NO₂⁻ < CN⁻ < CO

Memory Trick: “I Bring Cats For Our House, A Naughty Elephant Needs Cute Candy Occasionally”

Why Are Some Stronger?

Strong Field Ligands (CN⁻, CO):

• Can accept electrons from the metal through π-backbonding
• This extra interaction = bigger split

Weak Field Ligands (Halides):

• Only donate electrons
• Larger, more diffuse = less effective interaction

Practical Impact:

• [Co(NH₃)₆]³⁺ is LOW SPIN (NH₃ is strong)
• [CoF₆]³⁻ is HIGH SPIN (F⁻ is weak)

🔬 Ligand Field Theory: The Upgraded Version

Ligand Field Theory (LFT) is Crystal Field Theory’s smarter sibling. It combines CFT with molecular orbital theory.

What’s Different?

Key Upgrades:

1. σ-Bonding: Ligands donate electrons to metal
2. π-Bonding: Metal and ligands share electrons sideways
3. π-Backbonding: Metal donates electrons BACK to ligand

graph LR
    A["Ligand"] -->|σ donation| B["Metal"]
    B -->|π backbonding| A

Why CO and CN⁻ Are So Strong

These ligands have empty π orbitals*. The metal can push electron density into these orbitals.

Result:

• Stronger metal-ligand bond
• BIGGER crystal field splitting
• LOW SPIN complexes

Example:

• [Ni(CO)₄]: Nickel donates electrons into CO’s empty orbitals
• This π-backbonding makes the bond super strong!

🌀 Jahn-Teller Distortion: When Perfection Breaks

Sometimes, octahedral complexes refuse to stay perfect. They stretch or squash themselves!

The Jahn-Teller Theorem

“Any non-linear molecule with a degenerate electronic ground state will undergo a geometric distortion to remove that degeneracy.”

In Simple Words: If electrons can’t decide which orbital to go in (degeneracy), the molecule will change shape to help them decide!

When Does It Happen?

Look for unequal filling of the e_g orbitals:

What Happens?

Elongation (Most Common):

     L (far)
     |
 L—M—L (close)
     |
     L (far)

Top & bottom ligands move AWAY
Side ligands move CLOSER

Compression (Less Common): The opposite - top/bottom come closer, sides move away.

Real Example: Cu²⁺ (d⁹)

Copper(II) complexes are always distorted!

[Cu(H₂O)₆]²⁺:

• 4 water molecules at ~2.0 Å
• 2 water molecules at ~2.4 Å
• This is Jahn-Teller elongation!

Why It Matters:

1. Changes absorption spectra (affects color)
2. Affects reactivity (distorted bonds are weaker)
3. Important in biology (Cu enzymes use this!)

🎨 Putting It All Together: Why Complexes Are Colorful

The colors we see come from electrons jumping between split d-orbitals!

graph TD
    A["Light hits complex"] --> B["Electron absorbs energy"]
    B --> C["Jumps from t_2g to e_g"]
    C --> D["We see the<br>COMPLEMENTARY color"]

Color Depends On:

1. Δ (splitting) - determines what wavelength is absorbed
2. Ligand type - strong ligands = different color
3. Metal ion - different metals = different colors

✨ Key Takeaways

1. Crystal Field Theory: Ligands split d-orbitals into high and low energy sets

2. Crystal Field Splitting (Δ): The energy gap that determines properties

3. High Spin vs Low Spin: Electrons choose based on Δ vs pairing energy

4. Spectrochemical Series: Ranking of ligands by splitting power (I⁻ < … < CO)

5. Ligand Field Theory: The upgraded version including real bonding

6. Jahn-Teller Distortion: Unequal e_g filling causes shape changes

🧪 Quick Check: Did You Get It?

Ask yourself:

• Why is [Fe(CN)₆]⁴⁻ diamagnetic but [Fe(H₂O)₆]²⁺ paramagnetic?
• Why do Cu²⁺ complexes have unusual geometries?
• What makes CO such a strong field ligand?

If you can answer these, you’ve mastered the basics! 🎉

Remember: Metal complexes are like colorful puzzles. The ligands, the metal, and the electrons all work together to create the beautiful chemistry we see!
