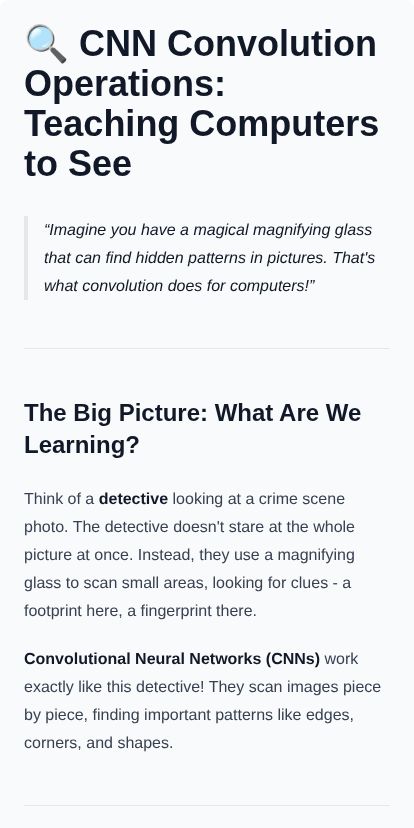

🔍 CNN Convolution Operations: Teaching Computers to See
Imagine you have a magical magnifying glass that can find hidden patterns in pictures. That’s what convolution does for computers!
The Big Picture: What Are We Learning?
Think of a detective looking at a crime scene photo. The detective doesn’t stare at the whole picture at once. Instead, they use a magnifying glass to scan small areas, looking for clues - a footprint here, a fingerprint there.
Convolutional Neural Networks (CNNs) work exactly like this detective! They scan images piece by piece, finding important patterns like edges, corners, and shapes.
🎯 What is a Convolution Operation?
The Sliding Window Detective
Imagine you have a small window (let’s say 3x3 squares). You slide this window across a big picture, one step at a time.
At each spot, you:
- Look at the 9 pixels under your window
- Do some math (multiply and add)
- Write down one number as the “summary”
Simple Example:
Your Image (5x5): Your Window (3x3):
[1][2][3][4][5] [1][0][1]
[6][7][8][9][0] [0][1][0]
[1][2][3][4][5] × [1][0][1]
[6][7][8][9][0]
[1][2][3][4][5]
The math: Multiply matching positions, then add everything up!
Real Life: When your phone camera finds faces, it’s doing millions of these sliding window operations!
🏗️ Convolutional Neural Networks (CNNs)
The Layer Cake of Vision
A CNN is like a layer cake where each layer does a different job:
graph TD A["📷 Input Image"] --> B["🔍 Conv Layer 1: Find Edges"] B --> C["🔍 Conv Layer 2: Find Shapes"] C --> D["🔍 Conv Layer 3: Find Objects"] D --> E["🎯 Output: Cat or Dog?"]
Why Layers?
- Layer 1: Finds simple things (lines, edges)
- Layer 2: Combines edges into shapes (circles, squares)
- Layer 3: Combines shapes into objects (eyes, ears)
- Final Layer: Says “That’s a cat!”
Simple Example:
Layer 1 finds: | / \ -
Layer 2 finds: △ □ ○
Layer 3 finds: 👁️ 👃 👂
Final: 🐱 Cat!
🎨 Filters and Kernels
The Special Magnifying Glasses
A filter (also called a kernel) is that small window we talked about. Different filters find different patterns!
Edge-Finding Filter:
[-1][ 0][ 1]
[-1][ 0][ 1]
[-1][ 0][ 1]
This finds vertical edges - like the side of a door.
Blur Filter:
[1][1][1]
[1][1][1] ÷ 9
[1][1][1]
This averages nearby pixels - makes things smooth.
Real Life Examples:
- Instagram filters = fancy combinations of kernels
- Phone camera “Portrait Mode” = edge-detection kernels
How Many Filters?
A single CNN layer might have 32, 64, or even 512 filters - each looking for something different!
🗺️ Feature Maps
The Treasure Maps of Patterns
When a filter slides across an image, it creates a feature map - a new picture showing WHERE that pattern was found.
Simple Example:
Original Image: Edge Filter: Feature Map:
🟦🟦⬜⬜ Finds vertical ⬛🟨⬛⬛
🟦🟦⬜⬜ → edges → ⬛🟨⬛⬛
🟦🟦⬜⬜ ⬛🟨⬛⬛
The bright spots (🟨) show where the filter found its pattern!
Key Insight:
- 1 filter = 1 feature map
- 64 filters = 64 feature maps (stacked like pages)
👟 Stride and Padding
How Big Are Your Steps?
Stride = How many pixels you move the window each time.
Stride = 1 (baby steps): Stride = 2 (big jumps):
[X][X][X][ ][ ] [X][X][X][ ][ ]
[ ][ ][ ][ ][ ] [ ][ ][ ][ ][ ]
Move 1 pixel right → Jump 2 pixels right →
[ ][X][X][X][ ] [ ][ ][X][X][X]
- Stride 1: Check everywhere (detailed but slow)
- Stride 2: Skip some spots (faster but might miss things)
Padding: Adding a Frame
Problem: When sliding, you can’t center the window on edge pixels!
Solution: Add padding - a border of zeros around the image.
Original: With Padding:
[1][2][3] [0][0][0][0][0]
[4][5][6] → [0][1][2][3][0]
[7][8][9] [0][4][5][6][0]
[0][7][8][9][0]
[0][0][0][0][0]
Types:
- Valid padding: No padding (output smaller)
- Same padding: Add enough zeros to keep same size
🏊 Pooling Layers
Shrinking the Picture (Smartly!)
After finding patterns, we often shrink the feature maps. Why?
- Less data = faster processing
- Keeps the important stuff, removes noise
Max Pooling (The Champion Picker)
Take the biggest value in each region:
[1][3]│[2][4]
[5][6]│[3][2] → [6][4]
──────┼────── [9][5]
[9][2]│[1][5]
[3][1]│[4][3]
Each 2x2 region → 1 number (the max)
Average Pooling
Take the average of each region:
[1][3]│[2][4]
[5][6]│[3][2] → [3.75][2.75]
(1+3+5+6)/4 = 3.75
Real Life: Like summarizing a book chapter - keep the main points, skip the details!
🌍 Global Average Pooling
The Ultimate Summary
Instead of keeping a small feature map, Global Average Pooling squishes each entire feature map into ONE number.
Feature Map (4x4): After Global Avg Pooling:
[2][4][1][3]
[5][6][2][4] → [3.5]
[3][2][1][5]
[4][3][6][2]
(Sum all 16 numbers) ÷ 16 = 3.5
Why Use It?
- Works with any image size
- Reduces overfitting (model doesn’t memorize)
- Common before the final decision layer
Simple Example: If you have 64 feature maps, Global Average Pooling gives you 64 numbers - one per feature type!
👁️ Receptive Field
How Much Can One Pixel See?
The receptive field is the area of the original image that affects ONE pixel in a feature map.
Building Up the View
graph TD A["Layer 1: 3x3 filter"] --> B["Receptive Field: 3x3"] B --> C["Layer 2: 3x3 filter"] C --> D["Receptive Field: 5x5"] D --> E["Layer 3: 3x3 filter"] E --> F["Receptive Field: 7x7"]
Each layer EXPANDS the receptive field!
Analogy:
- Layer 1 pixel sees: A tiny patch (like looking through a keyhole)
- Layer 5 pixel sees: Much bigger area (like looking through a window)
- Final layers: Can “see” the whole image!
Why It Matters:
- Early layers: Detect small patterns (edges)
- Deep layers: Understand big objects (faces, cars)
- Larger receptive field = understanding context
🎪 Putting It All Together
Let’s trace how a CNN sees a cat photo:
graph TD A["📷 Cat Photo 224x224"] --> B["Conv1: 32 filters, 3x3"] B --> C["Feature Maps: 32 channels"] C --> D["Max Pool: 2x2"] D --> E["Size: 112x112x32"] E --> F["Conv2: 64 filters, 3x3"] F --> G["More Feature Maps"] G --> H["..."] H --> I["Global Avg Pool"] I --> J["64 numbers"] J --> K[🐱 It's a cat!]
Summary Table:
| Component | Job | Example |
|---|---|---|
| Convolution | Find patterns | Edge detection |
| Filter/Kernel | The pattern detector | 3x3 matrix |
| Feature Map | Where patterns are | Bright = found! |
| Stride | Step size | 1 or 2 usually |
| Padding | Keep edges | Add zeros |
| Pooling | Shrink smartly | Max or Average |
| Global Avg Pool | One number per map | Final summary |
| Receptive Field | Pixel’s “vision” | Grows with depth |
🚀 You Did It!
You now understand how computers learn to see:
- Convolution = Sliding a small window, doing math
- CNNs = Stack of convolution layers
- Filters = Pattern detectors (edges, shapes, textures)
- Feature Maps = Treasure maps of found patterns
- Stride = Step size when sliding
- Padding = Frame of zeros to keep size
- Pooling = Smart shrinking
- Global Average Pooling = Ultimate compression
- Receptive Field = How much context a pixel has
Remember the detective analogy: CNNs are detectives that systematically scan images with special magnifying glasses (filters), each looking for different clues, layer by layer, until they solve the case!
Next time you use a photo filter or your phone recognizes a face, you’ll know the magic behind it! ✨
