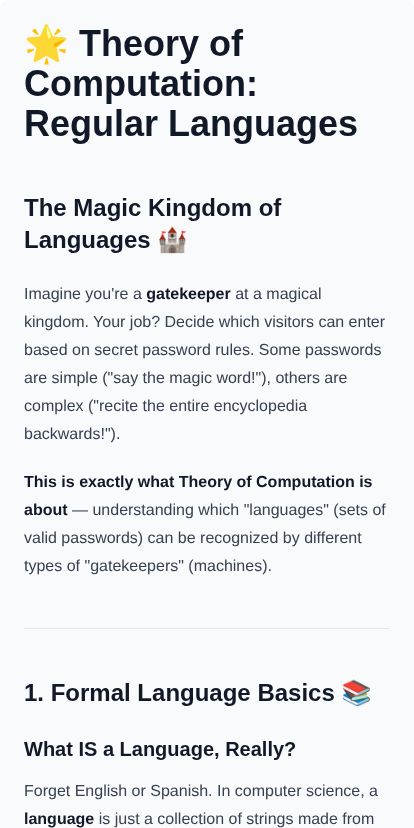

🌟 Theory of Computation: Regular Languages

The Magic Kingdom of Languages 🏰

Imagine you’re a gatekeeper at a magical kingdom. Your job? Decide which visitors can enter based on secret password rules. Some passwords are simple (“say the magic word!”), others are complex (“recite the entire encyclopedia backwards!”).

This is exactly what Theory of Computation is about — understanding which “languages” (sets of valid passwords) can be recognized by different types of “gatekeepers” (machines).

1. Formal Language Basics 📚

What IS a Language, Really?

Forget English or Spanish. In computer science, a language is just a collection of strings made from an alphabet.

Think of it like this:

• Alphabet (Σ) = Your set of LEGO blocks (like {a, b})
• String = Any tower you build (like “aab”, “bba”, “aaaa”)
• Language = The specific towers that follow YOUR rules

Simple Example 🧱

Alphabet: Σ = {0, 1}

Possible strings: "", "0", "1", "00", "01", "10", "11", "000"...

Language L = "All strings starting with 1"
Valid: "1", "10", "11", "100", "111"
Invalid: "", "0", "01", "001"

Real Life Connection:

• Binary numbers that don’t have leading zeros!
• Phone numbers that must start with a country code

2. The Chomsky Hierarchy 🏔️

The Four Kingdoms of Languages

Noam Chomsky (a brilliant linguist) discovered that all languages fall into four levels, like floors in a tower. Each floor can do everything the floors below can do, plus more!

graph TD
    A["Type 0: Unrestricted<br/>👑 All-Powerful King"] --> B["Type 1: Context-Sensitive<br/>🧙 Wise Wizard"]
    B --> C["Type 2: Context-Free<br/>🛡️ Brave Knight"]
    C --> D["Type 3: Regular<br/>🐕 Loyal Dog"]

    style A fill:#ff6b6b,color:#fff
    style B fill:#feca57,color:#000
    style C fill:#48dbfb,color:#000
    style D fill:#1dd1a1,color:#fff

What Each Level Can Do

The Dog Analogy 🐕

• Regular (Type 3): A dog that can count to 1. “Did I see a treat? Yes or no.”
• Context-Free (Type 2): A dog that can match pairs. “Same treats in each bowl?”
• Context-Sensitive (Type 1): A dog that counts carefully. “Three treats here, three there, three over there?”
• Unrestricted (Type 0): A super-genius dog with a notebook!

3. Regular Languages 🎯

The Simplest Yet Powerful Club

Regular languages are the foundation of everything. They’re simple enough for basic machines, yet powerful enough for:

• ✅ Email validation
• ✅ Search patterns (Ctrl+F)
• ✅ Lexical analysis in compilers
• ✅ Network protocol matching

What Makes a Language “Regular”?

A language is regular if you can describe it using:

1. Finite Automata (simple machines)
2. Regular Expressions (pattern rules)
3. Regular Grammars (production rules)

Example Regular Languages

✅ REGULAR:
• All strings containing "abc"
• Strings with even number of 0s
• Binary numbers divisible by 3

❌ NOT REGULAR:
• Strings like aⁿbⁿ (equal a's then b's)
• Palindromes of any length
• Matching parentheses

Why can’t we match aⁿbⁿ?

Imagine counting a’s, then checking if b’s match. You’d need to remember how many a’s you saw. Regular machines have finite memory — they can’t count forever!

4. Finite Automata 🤖

Your Tiny Robot Friend

A Finite Automaton is like a robot with:

• A small set of states (moods)
• Rules for changing states based on input
• Some accepting states (happy moods)

If the robot ends up happy after reading your string, the string is accepted!

The Turnstile Example 🚪

graph LR
    L["🔒 LOCKED"] -->|push| L
    L -->|coin| U["🔓 UNLOCKED"]
    U -->|coin| U
    U -->|push| L

    style L fill:#ff6b6b,color:#fff
    style U fill:#1dd1a1,color:#fff

States: Locked, Unlocked Alphabet: {coin, push} Start: Locked Accept: Unlocked (you can pass!)

Try it:

• “coin” → Unlocked ✅
• “push” → Locked ❌
• “coin, push, coin” → Unlocked ✅

5. DFA vs NFA 🎭

Two Types of Robot Friends

DFA: The Predictable One 📋

Deterministic Finite Automaton

• For each state and input, there’s exactly one next state
• No surprises, no choices
• Always knows exactly where to go

graph LR
    q0((q0)) -->|a| q1((q1))
    q0 -->|b| q0
    q1 -->|a| q1
    q1 -->|b| q0

    style q1 fill:#1dd1a1,stroke:#000,stroke-width:3px

DFA accepting strings ending with ‘a’

NFA: The Creative One 🎨

Nondeterministic Finite Automaton

• Can have multiple choices for the same input
• Can have ε-transitions (move without reading anything!)
• Accepts if any path leads to acceptance

graph LR
    q0((q0)) -->|a| q0
    q0 -->|a| q1((q1))
    q0 -->|b| q0
    q1 -->|b| q2((q2))

    style q2 fill:#1dd1a1,stroke:#000,stroke-width:3px

NFA accepting strings containing “ab”

The Big Secret 🤫

NFAs and DFAs are equally powerful!

Every NFA can be converted to a DFA (it might have more states, but it works). This is like having two different recipes for the same cake!

6. Regular Expressions 🔮

The Magic Spells of Pattern Matching

Regular expressions (regex) are like spells that describe patterns. Every regular language can be written as a regex!

The Three Magic Ingredients

Building Spells Step by Step 🧙‍♂️

Spell 1: Match “cat” or “dog”

cat|dog

Spell 2: Match any number of a’s followed by b

a*b
Matches: "b", "ab", "aab", "aaab"...

Spell 3: Match strings starting with “ab”

ab(a|b)*
Matches: "ab", "aba", "abb", "abab"...

Spell 4: Match even-length strings over {a,b}

((a|b)(a|b))*
Matches: "", "aa", "ab", "ba", "bb", "aaaa"...

Real-World Regex Examples

Email pattern (simplified):
[a-z]+@[a-z]+\.[a-z]+

Phone number:
[0-9]{3}-[0-9]{3}-[0-9]{4}

Time (24-hour):
[0-2][0-9]:[0-5][0-9]

🎯 The Big Picture

graph TD
    RL["Regular Language"] --> FA["Finite Automata"]
    RL --> RE["Regular Expression"]
    RL --> RG["Regular Grammar"]

    FA --> DFA["DFA"]
    FA --> NFA["NFA"]

    DFA <-->|Equivalent| NFA
    FA <-->|Equivalent| RE

    style RL fill:#667eea,color:#fff
    style FA fill:#764ba2,color:#fff
    style RE fill:#f093fb,color:#000
    style RG fill:#f5576c,color:#fff
    style DFA fill:#4facfe,color:#fff
    style NFA fill:#00f2fe,color:#000

All of these are different ways to describe the SAME thing!

• Finite Automata = The machine view
• Regular Expressions = The pattern view
• Regular Grammars = The rule view

🌟 Key Takeaways

1. Languages are just sets of strings that follow rules
2. Chomsky Hierarchy organizes languages by complexity (Regular is simplest)
3. Regular Languages = patterns with finite memory
4. DFA = predictable robot, one path only
5. NFA = creative robot, explores all paths
6. Regex = magical pattern-matching spells
7. All three (DFA, NFA, Regex) describe the same regular languages!

🎮 Your Journey Continues…

You’ve just learned the foundation of computation theory! Regular languages are like learning to walk before you run.

Next adventures:

• Context-Free Languages (matching brackets!)
• Turing Machines (unlimited power!)
• The Halting Problem (what computers CAN’T do!)

Remember: Every complex system starts with these simple building blocks. You’re now fluent in the language of computation! 🚀
